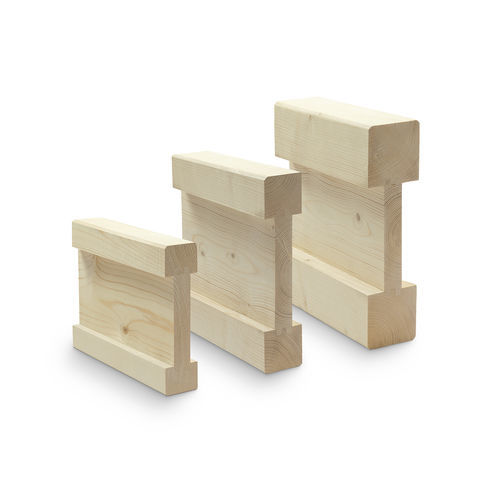

Load-bearing beam INOPANNE STANDARDsolid woodPicea abiesfir
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Specifications
- load-bearing
- Material
- solid wood, Picea abies, fir
- Cross section
- I
- Application
- for flooring, framing, roof
- Other characteristics
- large-span, with equal legs, custom
- Width
60 mm, 70 mm, 90 mm
(2.4 in, 2.8 in, 3.5 in)- Height
Max.: 465 mm
(18 in)Min.: 220 mm
(9 in)- Weight
Max.: 14 kg
(31 lb)Min.: 6 kg
(13 lb)
Description
Made entirely of solid wood, the Inopanne Standard is unique in its kind. Its two frames are fixed to the core by a double tongue and groove assembly, glued with polyurethane glue which gives it very good rigidity. It is systematically treated at the end of the line with a class 2 preservation treatment.
Applications: purlins, supporting rafters, floor joists and roof terraces.
Its advantages:
- small, medium and large spans
- ease of cutting
- lightness
- perceivability for passage of ducts
- mechanical resistance
- machining possible
On request, a counter jib can be obtained during assembly.
