Manual patient lift 5467.11

for humansliftingaluminum

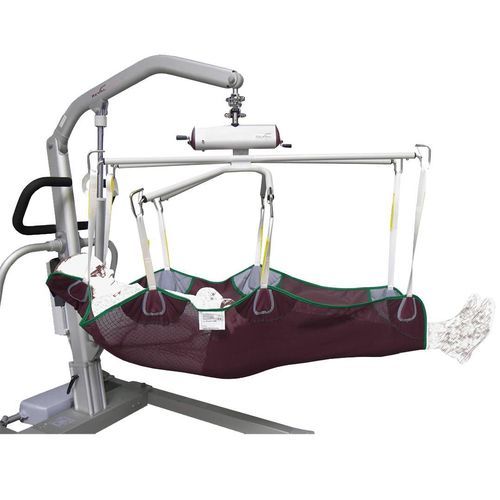

The Spider Stretcher is designed for lifting and transferring patients in a horizontal position using a strap. It is commonly used in surgical departments as well as in intensive care and radiology departments. The mechanical recentrer allows for easy adjustment of the center of gravity during lifting. The set can be used with ceiling rail lifts as well as Goliath XL and M mobile patient lifts. Stretcher - Tubular steel structure, epoxy paint - Stainless steel hooks with safety clips Recentrer - Trapezoidal screw drive mechanism - Anodized aluminum profile - All mechanical parts in stainless steel - Inner carriage travel: 150 mm Weight - Recentrer + stretcher weight: 11kg - Maximum load on stretcher: 180kg - Maximum static load on recentrer: 150kg Key Features - Fabric strap with 'Easygliss' coating for easy application or breathable mesh strap. - Possible adjustment of the patient's head inclination. - Mechanical recentrer for perfectly horizontal lifting. - Compatible with Reval Scale III weighing system. Technical Specifications - Type of fabric: Mesh (8 attachment points), Fabric (8 attachment points) - Tubular steel structure, epoxy paint - Stainless steel hooks with safety clips - Trapezoidal screw drive mechanism - Anodized aluminum profile - All mechanical parts in stainless steel - Inner carriage travel: 150 mm - Recentrer + stretcher weight: 11kg - Maximum load on stretcher: 180kg - Maximum static load on recentrer: 150kg - Fabric strap with 'Easygliss' coating or breathable mesh - Adjustment of the patient's head inclination - Mechanical recentrer for horizontal lifting - Compatible with Reval Scale III weighing system
