Manual patient lift 5467.11

height-adjustableliftingaluminum

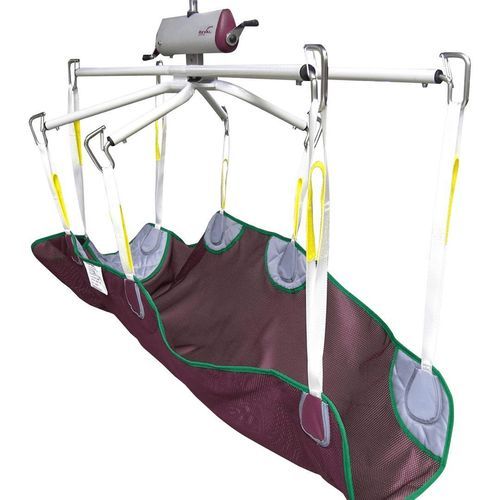

The Spider Stretcher is designed for lifting and transferring patients in a horizontal position using a strap. It is commonly used in surgical departments as well as in intensive care and radiology departments. The mechanical recenter allows for easy adjustment of the center of gravity during lifting. The set can be used with ceiling rail lifts as well as Goliath XL and M mobile patient lifts. Stretcher - Tubular steel structure, Epoxy paint - Stainless steel hooks with safety clips Recenter - Trapezoidal screw drive mechanism - Anodized aluminum profile - All mechanical parts in stainless steel - Inner carriage travel: 150 mm Weight - Recenter + stretcher weight: 11kg - Maximum load on stretcher: 180kg - Maximum static load on recenter: 150kg Key Features - Fabric strap with 'Easygliss' coating for easy application or breathable mesh strap. - Possible adjustment of the patient's head inclination. - Mechanical recenter for perfectly horizontal lifting. - Compatible with Reval Scale III weighing system. Compliance - Medical Device 93/42/EEC Class I - NF EN 10535 Technical Specifications - Tubular steel structure, Epoxy paint - Stainless steel hooks with safety clips - Trapezoidal screw drive mechanism - Anodized aluminum profile - All mechanical parts in stainless steel - Inner carriage travel: 150 mm - Recenter + stretcher weight: 11kg - Maximum load on stretcher: 180kg - Maximum static load on recenter: 150kg - Fabric strap with 'Easygliss' coating or breathable mesh - Adjustment of the patient's head inclination - Mechanical recenter for horizontal lifting - Compatible with Reval Scale III - Medical Device 93/42/EEC Class I - NF EN 10535
