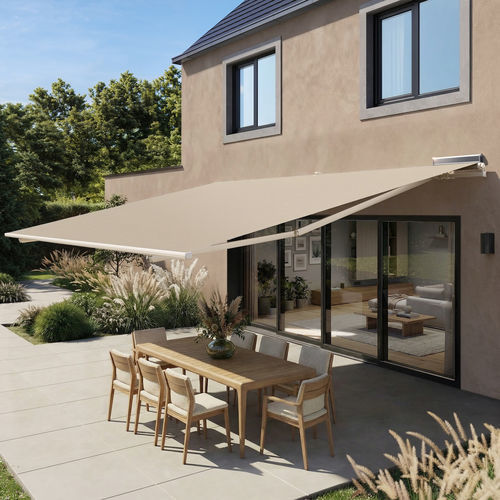

Retractable awning HORIZON SUNPOWERED

motorizedpatiobeige

Description
With Horizon Sunpowered, Franciaflex offers a solar version of its monobloc retractable awning designed to cover large areas. This model retains the structural qualities of the Horizon awning — robustness, modularity and large-format capability — while integrating an autonomous solar drive that simplifies installation. The drive is powered by a battery rechargeable via a photovoltaic panel, allowing extension or retraction of the awning independently of mains power.

Usage and sizing
The Horizon model was developed to meet the needs of large terraces, both residential and commercial. The most requested formats — solar retractable awning 3x3, 4x3, 5x3 or 6x3 — fit comfortably within its dimensional capabilities. The micrometric adjustable tilt from 5° to 45° allows precise setting of the awning angle to optimise solar protection.

Solar operation
The photovoltaic panel captures solar energy and recharges a battery that powers the awning drive. The panel can be positioned for optimal exposure or remote-mounted to improve energy capture depending on the installation. The awning remains operational during power outages, ensuring independent operation.

Advantages

• Solar semi-cassette retractable awning adapted to large terraces
• Large sizes possible up to 6 m width and 4 m projection
• Autonomous solar drive without mains connection
• Monobloc structure with a 40 mm steel drive square for rigidity

Green benefits

• Full freedom of solar energy: reliable, high-performance solar drive for an autonomous awning, durable and always ready to operate
• The sun as a comfort driver: powers the awning and helps control light and solar exposure throughout the day
• Aluminium, a proven material: resistant, durable and recyclable

Technical characteristics / specifications

• Type: monobloc / semi-cassette retractable awning (Sunpowered version)
• Drive: autonomous solar drive with rechargeable battery
• Control: radio control with handheld transmitter
• Motor: electronic end stops; anti-tension function
• Reliability tests: motor tested up to 10,000 cycles
• Battery autonomy: up to 40 cycles without recharge
• Structure: extruded aluminium frame
• Drive square: 40 mm steel drive square ensuring rigidity
• Fasteners: stainless steel
• Valance: aluminium protective valance for fabric available
• Tilt: micrometric adjustable from 5° to 45°
• Dimensions: minimum width 1.35 m — maximum width 17.72 m
• Projection/drop: minimum 1.5 m — maximum 4 m
• Arm safety: double arms with sheathed stainless steel cables tested to 7,000 cycles
• Wind resistance: high resistance, can withstand a 80 kg load at a 3.50 m drop
• Sensors and automation: compatible with weather sensors (wind, etc.) and option to integrate sensors for automation
