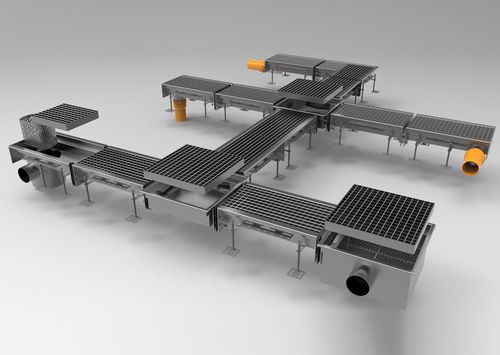

Drainage channel with grating M200

stainless steelfor public spacesfor heavy traffic

recommended in cases with the need to drain large quantities of washing and processing water in short times. The grate is made to measure according to weight and traffic needs, pedestrian traffic for applications in large kitchens, or vehicular traffic for applications in environments with heavy traffic with heavy vehicles. Constructed entirely in 2-mm thick STAINLESS STEEL 304 (316 on request). Each module is equipped with side clamps for anchoring into concrete, adjusting screws and levelling feet to best position the channels during installation. The modules are joined using flanges with EPDM seals (or Teflon on request) and stainless steel bolts to guarantee perfect channel tightness. Each mounting kit includes detailed and numbered diagrams for proper assembly, laying and storage tips Ability to withstand high loads thanks to the heavy-duty grate High absorption capacity in short times Easy and complete sanitizing of the channel body The V-shaped bottom and the 5-mm/metre internal slope prevents the stagnation of liquids inside the channel Pre-installed PVC reinforcements under the rim to optimize the lifespan and hygiene in the installation area Made-to-measure drainage and can include an anti-odour siphon with a basket for the collection of solids, or a simple drainage pipe Ideal application in interior and exterior areas requiring high degree of cleanliness and hygiene Wide range of grates satisfying any weight and aesthetic requirement Every line is made to measure according to the customer’s needs, working together to determine the length, shape of the line and positioning one or more drains at the best spots.
