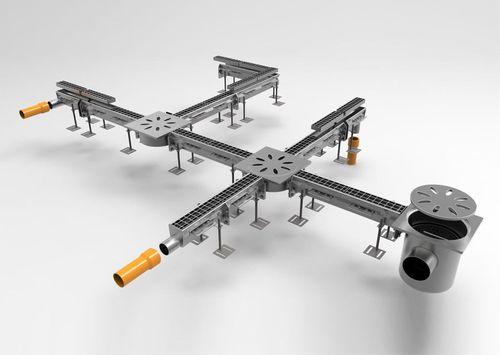

Drainage channel with grating M60

stainless steelfor public spaceslight traffic

An excellent alternative to the slotted channel, because while maintaining the small size of this type of drainage pipe, the grate doubles the absorption capacity with respect to the slot and maximizes the total cleaning of the interior channel. Constructed entirely in 2-mm thick STAINLESS STEEL 304 (316 on request). Each module is equipped with side clamps for anchoring into concrete, adjusting screws and levelling feet to best position the channels during installation. The modules are joined using flanges with EPDM seals (or Teflon on request) and stainless steel bolts to guarantee perfect channel tightness. Each grated channel mounting kit includes detailed and numbered diagrams for proper assembly, laying and storage tips. Ability to withstand high loads thanks to the heavy-duty grate Wide range of grates satisfying any weight and aesthetic requirement The V-shaped bottom and the 5-mm/metre internal slope prevents the stagnation of liquids inside the channel Made-to-measure drainage and can include an anti-odour siphon with a basket for the collection of solids, or a simple drainage pipe Ideal application in interior and exterior areas requiring high degree of cleanliness and hygiene Certified compliant with UNI EN 1433 Every line is made to measure according to the customer’s needs, working together to determine the length, shape of the line and positioning one or more drains at the best spots. We provide a simple and intuitive design with all necessary measurements for installation.
