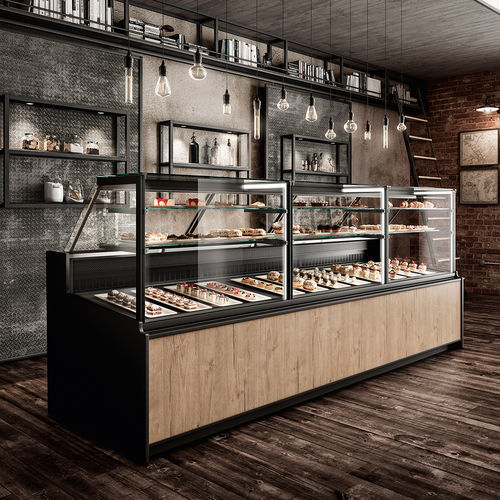

Counter refrigerated display case GIULIA

for shopfor pastry shopsfor bakery

Product overview
Giulia is a multifunction professional display case for pastry, bakery and fresh foods. It is built from a complete range of modules — refrigerated (static or ventilated), heated, neutral and praline modules — available in linear and corner versions and designed to be connected together to form continuous counters.

Main features

• Available modules: refrigerated (static or ventilated), heated, neutral and praline modules.
• Configurations: linear and corner modules that can be linked to create uninterrupted display counters.
• Refrigeration options: ventilated display deck with thermostatic valve or static refrigeration with capillary tube according to product load and type.
• Motorization: internal or remote compressors to suit available technical spaces.
• Remote monitoring (optional): integration with the Frigoconnect wi‑fi/cloud telemonitoring system for HACCP temperature control and self‑control procedures.

Hygiene, materials and maintenance
The unit is designed for easy cleaning and durability: insulated load‑bearing frame in AISI 304 stainless steel with CFC‑free polyurethane foam; rear grilles in AISI 304 stainless steel; anodized aluminium glass frame; aluminium pan with injected polyurethane insulation; worktop in AISI 304 stainless steel on treated steel base with adjustable feet. Straight glass is tempered; front glass is openable with an air demister; rear closure is standard sliding transparent plexiglass doors, removable for cleaning; night curtain available on request.

Finishes and customization
Available in Total Black and Total White looks or customizable with a wide range of optional colours and wood finishes. Display deck available in AISI 304 stainless steel or black to suit the shop aesthetic.

FAQ

• Which module types and temperatures are available? The range includes refrigerated static or ventilated modules, heated, neutral and praline modules, allowing different temperature zones within the same counter.
• What is the difference between ventilated and static refrigeration? The ventilated version uses a thermostatic valve for the display deck; the static version operates with a capillary tube. Choice depends on load and the type of pastry or product displayed.
• For which products is Giulia suitable? Designed for pastries, baked goods, chocolates, pralines and fresh foods; it is a multifunction showcase suitable to display different product types in the same counter.
• How are modules configured? Modules can be combined in linear runs and corner arrangements; all modules are connectable to form continuous display surfaces adapted to the shop layout.
• What finishes and customisation options exist? Standard Total Black and Total White; wide choice of optional colours, wood finishes and aesthetic options; display deck in AISI 304 stainless steel or black.
• Which materials are used? Insulated structure in AISI 304 stainless steel with CFC‑free polyurethane; anodized aluminium glass frame; aluminium pan with injected polyurethane insulation; tempered straight glass; AISI 304 stainless steel worktop.
• How is cleaning facilitated? Openable front glass, air demisting system, removable rear sliding plexiglass doors and stainless steel worktop for easy cleaning. Night curtain on request.
• How does it support HACCP management? Optional Frigoconnect wi‑fi/cloud telemonitoring system for remote temperature control and HACCP self‑control procedures.
• Where can the motors be located? Available with integrated (internal) compressors or remote units positioned away from the counter.

Technical specifications

• Type: professional display case for pastry, bakery and fresh foods.
• Modules: refrigerated (static or ventilated), heated, neutral, praline modules; available in linear and corner versions.
• Display refrigeration: ventilated (thermostatic valve) or static (capillary tube).
• Motorization: internal or remote.
• Structure: insulated AISI 304 stainless steel + CFC‑free polyurethane.
• Rear grilles: AISI 304 stainless steel.
• Glass frame: anodized aluminium; straight tempered glass; openable front glass with air demister.
• Pan: aluminium with injected polyurethane insulation.
• Worktop: AISI 304 stainless steel (also available in black).
• Base: treated steel with adjustable feet.
• Rear closure: removable sliding transparent plexiglass doors; night curtain on request.
• Optional: Frigoconnect wi‑fi/cloud telemonitoring for HACCP; wide range of colours, wood finishes and aesthetic options.
