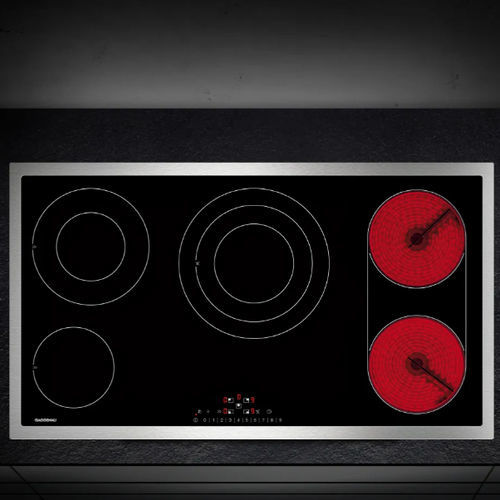

Vitroceramic cooktop CE291101

5 burnerbuilt-inwith touch controls

Frameless for flush installation Frying sensor function Three-ring cooking zone up to 27 cm Large roasting zone Sensor control with direct selection of output level 2 Super-Quick cooking zones ø 18 cm (1800 W); together they convert to 18 x 41.5 cm (4400 W) roasting zone. 1 Super-Quick cooking zone ø 12 cm (750 W), converts to ø 21 cm (2100 W, with booster 2600 W) cooking zone. 1 Super-Quick cooking zone ø 14.5 cm (1050 W), converts to ø 21 cm (2200 W) or ø 27 cm (3080 W) cooking zone. 1 Super-Quick cooking zone ø 14.5 cm (1200 W, with booster 1600 W). Sensor control with direct selection of ouput level. Cooking zone marking. Electronic power control in Variable 17-stage power settings for each zone. Frying sensor function for ø 21 cm cooking zone. Booster function. Cooking timer for up to 99 minutes. Short-term timer. Options menu. Main switch. Operation indicator. 2 stage Hh residual heat indicator for each zone Child lock. Safety shut-off. Immersion depth 51 mm, depth at plug socket 51 mm. The cooktop must not be installed lower than the top edge of the worktop. Under the plug socket, a 10 mm clearance must be observed from side panels or from intermediate shelf. The cooktop must be freely accessible from underneath to be able to detach the cooktop´s base in a downward direction. Installation possible in a 60 cm wide lower cabinet. Appliance must be fixed from underneath. Cooktop clamping range: 20 - 50 mm. Joint width may vary due to dimensional tolerances of the glass ceramic cooktop and the worktop cut-out. Appliance weight: approx. 13. Total connected load 11.0 KW. Plan a connection cable.
