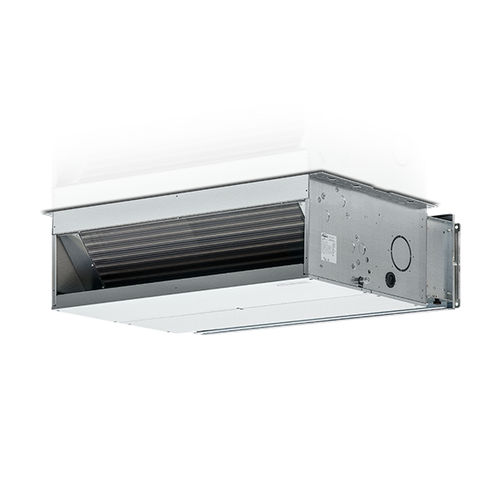

Duct fan coil UTN

UTN high-head duct units, vertical and horizontal recess mounted, 3-speed motor Eurovent certification Reversible water connections ABS centrifugal fans Available head up to 185 Pa 14 models Heat exchanger up to 5 rows 2 and 4 pipe systems Incorporable ioniser 3-speed motor Can be integrated into ERGO. The range of UTN duct units has been designed to air condition rooms where the installation of duct units is required. Thanks to the engineering solutions adopted, the UTN units offer high application flexibility: Horizontal or vertical installation, thanks to the design of the water drip system. May be connected to flexible circular ducts (Ø 200mm) or rectangular shaped ducts. Air intake direction to be arranged during installation. Bearing structure built from galvanised steel sheet, insulated with condensation proof, soundproof material, inspection panels, fresh air intake setting, quick fastening slots. Double suction aluminium centrifugal fans, with inserted blades. Three-speed electric motor. High efficiency heat exchanger made with copper piping and aluminium fins. Water drip tray and drain outlet, suitable for vertical or horizontal installation. A broad range of accessories to meet every type of installation requirement. Control panels and air filter available as accessory.
