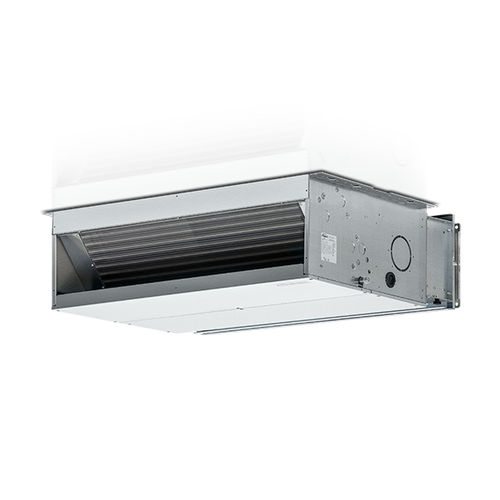

Duct fan coil UTNI

duct fan coil
duct fan coil
Add to favorites
Compare this product


Characteristics

Installation
duct

Description

UTNi high-head duct units, with BLDC motor with electronic switching system, vertical and horizontal recess mounted. Eurovent certification Reversible water connections ABS centrifugal fans Available head up to 100 Pa Modulating operation Low energy consumption Extremely quiet operation 8 models Heat exchanger up to 6 rows 2 and 4 pipe systems Incorporable ioniser BLDC Motor Can be integrated into ERGO The range of UTN duct units has been designed to air condition rooms where the installation of duct units is required. Thanks to the engineering solutions adopted, the UTN units offer high application flexibility: Horizontal or vertical installation, thanks to the design of the water drip system. May be connected to flexible circular ducts (Ø 200mm) or rectangular shaped ducts. Air intake direction to be arranged during installation. Bearing structure built from galvanised steel sheet, insulated with condensation proof, soundproof material, inspection panels, fresh air intake setting, quick fastening slots. Double suction aluminium centrifugal fans, with inserter blades. Electric motor with BLDC electronic switching system (brushless), mounted on vibration damping couplings. The unit is equipped with an inverter board to control the motor, that makes it possible to precisely set the maximum rotation speed of the motor (control signal 0-10 V). High efficiency heat exchanger made with copper piping and aluminium fins. Water drip tray and drain outlet, suitable for vertical or horizontal installation. A broad range of accessories to meet every type of installation requirement. Control panels and air filter available as accessory.
