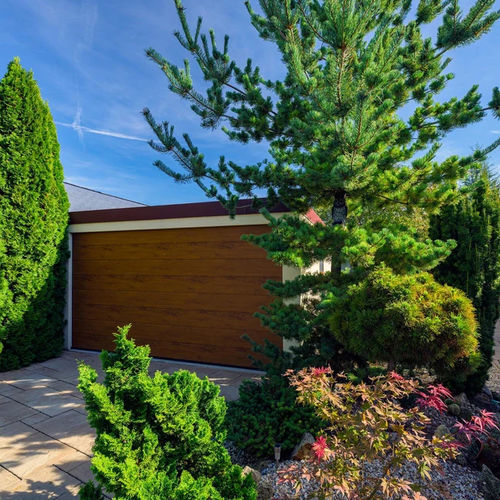

Prefabricated module GAR_M05

Short description
The GARDEON® mounted steel garage with Hörmann sectional door is a space-saving prefabricated steel building featuring a finished KABE render façade and a quiet ceiling-guided Hörmann sectional door. It is offered with insulation options, multiple design variants and rapid assembly using prefabricated elements.

Main features

• Includes Hörmann sectional door (dimensions: 4000 × 2125 mm).
• Finished self-cleaning KABE render on the façade (thin wall panels: approx. 5 cm panel thickness as described).
• Integrated lighting system and provision for solar panel connection.
• Ultra-quiet opening and closing mechanism for the garage door.
• Robust galvanized steel structure with high resistance to wind, hail and mechanical loads.
• Fast erection: steel structure assembled in approx. 3 to 6 hours (complete structural assembly possible within a morning/afternoon).
• Options: partially or fully insulated variants available (electrical and plumbing installations not included in the building).
• The structure is demountable and can be relocated to another prepared site.
• Interior space gain compared with traditional masonry: approx. 50 cm of additional usable space.
• Versatility: façade render color, door/window/door-frame colors, carport position (left/right) and other customizations available.

Available variants / selection on the page

• Standard size shown on the page: 4.5 m x 7 m.
• Carport option: none (other sizes/positions available on request).
• Canopy width: none (options on request).
• Wall and window colors: several tones (e.g. White, Anthracite, Light Grey, Yellow, Moss Green) and options for parapet/windows/doors (Anthracite, Black, Brown, White, white aluminium).

Optional additional services (selection)

• Warranty extension (e.g. 20 years as an option).
• Professional installation by the GARDEON® team.
• Additional windows in various sizes, rooflights, extra doors.
• Building height adjustments (several steps available).
• Additional equipment options and exclusive packages available.

Standard parameters (table)
Height: 2290 mm
Roof covering type: DRIPSTOP
Gutter system: Included
Roof load capacity: 125 kg/m²
Garage door: 4000 x 2125 mm
Beams: Included
Anchoring: Included

Further product details

• Delivery is standardly free (free delivery displayed).
• Standard lead time for mounted buildings: approx. 8–12 weeks after deposit (delivery date coordinated).
• Transport/logistics: delivered in parts, suitable for commercial vehicle up to 3.5 t (no large truck or crane required for element delivery).
• Warranty: GARDEON® states a 10-year warranty on render/façade; extended warranty options available.
• Accessories from reputable manufacturers (e.g. Hörmann doors, GLADIATOR interior fittings) installed/optionable.

Characteristics / technical specifications

• Model code: GAR_M05
• Dimensions (example shown on page): 4.5 m x 7 m
• Product type: mounted steel garage with render façade
• Wall composition: steel panel with KABE render (approx. 5 cm panel thickness as described)
• Roof load capacity: 125 kg/m²
• Doors: Hörmann sectional door (4000 × 2125 mm)
• Façade color: various RAL/standard colors selectable
• Assembly time (structure): approx. 3–6 hours
• Demountable/relocatable: possible
