Garage carport GAR_M08

solarsteel2-person

Overview

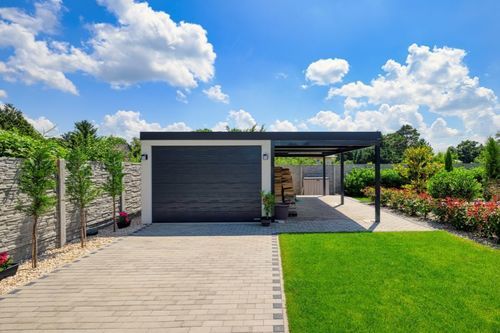

The spacious, assembled GARDEON® garage with Hörmann sectional door and integrated carport combines contemporary design with practical functionality. Fitted with Hörmann garage doors, integrated lighting and an option for solar panel connection. Ultra-quiet opening and closing mechanism provides high user comfort.

Design and wall construction
GARDEON® garages feature a finished decorative render (Swiss KABE technology). Thin steel wall construction (approx. 5 cm) with self-cleaning render, weather-resistant and low maintenance. Panel construction provides up to 50 cm additional interior space compared to traditional masonry walls.

Fast installation
Rapid assembly of the steel structure: complete steel construction is typically installed in 3 to 6 hours by qualified technicians.

Safety and robustness
Robust locking systems and a solid steel structure offer protection against burglary, strong storms, hail and other extreme conditions. Galvanized components for corrosion protection; high-quality components from reputable manufacturers (e.g. Hörmann for doors/entrances).

Flexibility and usage
The garage is available in various sizes, render colours and with the option of a carport (mountable on left or right). Partially or fully insulated variants are available for year-round comfort (cooler in summer, warmer in winter). The construction is demountable and can be reassembled at another prepared location.

Configuration (options on the product page)

• Dimensions: 3 m × 5 m; 3 m × 6 m; 3 m × 7 m; other sizes on request
• Carport position: Left or Right
• Canopy width: 3 m (included) or 6 m (+ surcharge)
• Wall colour / render: White, Anthracite, Light Grey, Yellow, Moss Green
• Parapet / windows / doors: Anthracite, Black, Brown, White, White aluminium

Recommended additional services

• Warranty extension to 20 years (for an additional fee)
• Professional installation by the GARDEON® team (optional)
• Additional windows, skylight/light strips, extra doors and further equipment (optional)

Standard parameters
Height: 2290 mm
Roof covering type: DRIPSTOP
Gutter system: Included
Roof load capacity: 125 kg/m²
Garage door: 2500 × 2125 mm (Hörmann)
Beams: Included
Anchoring: Included

Warranty & durability
Long-term durability of the exterior render with a 20-year warranty; optional warranty extensions available. Low maintenance: interior cleaning with a damp cloth if needed; exterior cleaning with a pressure washer possible for heavier dirt.

Characteristics / technical specifications

• Product code: GAR_M08
• Product ID: 10394
• Example selection in the offer: incl. carport
• Delivery time (assembled building): approx. 8–12 weeks after deposit
• Delivery: free (according to product information)
• Price example on the site: €11,594 incl. VAT
• Roof slope height difference: 13 cm (construction specification)
• Interior space increase compared to masonry: approx. 50 cm
• Panel thickness compared to masonry: approx. 5 cm
