Interior door G-LIKE

woodenaluminiumanodized aluminum

Presentation

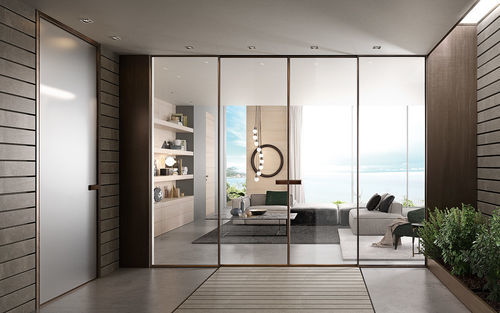

G-Like is a collection of interior glass doors by Gidea designed for minimal, light-filled interiors. The range includes glass doors with a very slim aluminium profile and flush-to-wall leaves available smooth or with decorative fillets.

Models and solutions

• Glass doors with an ultra-slim aluminium profile.
• Flush-to-wall doors with smooth leaf or leaf decorated with fillets.
• Tambour or laminate leaves available as alternatives to full glass leaves.

Advantages

• Wide selection of finishes.
• Models with minimal-thickness aluminium profile.
• Available in 7 types of opening.

Frame, profile and installation
The G-Like doors use a slim aluminium profile that supports 6 mm glass and an extruded aluminium frame. The frame can be installed in three ways:

• a) Built-in (masonry) for a minimalist result without trims.
• b) Fixed to the wall without subframe, completed with 35 mm trims.
• c) Mounted on a subframe using 80 mm trims.

Finishes / technical specifications

• Glass supported: 6 mm.
• Profile: slim aluminium profile; frame: extruded aluminium.
• Installation types: built-in (masonry); fixed to wall without subframe (35 mm trims); mounted on subframe (80 mm trims).
• Profile and frame finishes: stainless steel, aluminium, bronze anodized aluminium, white lacquer; RAL lacquer available.
• Leaves available: tambour (wood) or laminate.
• Opening types: 7.
