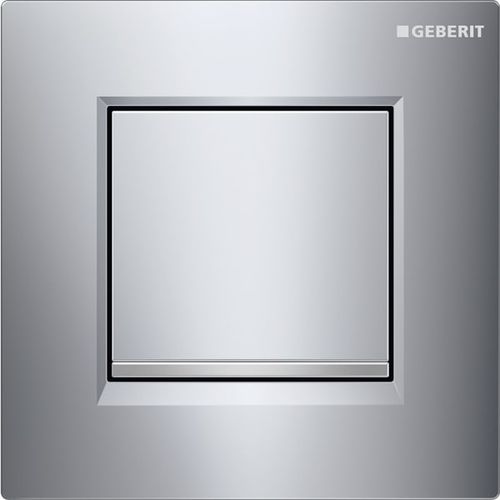

Pneumatic toilet flush 116.017.KH.1

for urinalscommercial

Can be operated with used water (rainwater) provided it is passed through a filter system first Flow pressure 1-8 bar Maximum test pressure, water 16 bar Maximum test pressure, air / inert gas 3 bar Relative humidity < 100 % Maximum operating temperature, water 30 °C Actuation force < 12 N Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.18 l/s Calculated flow rate 0.22 l/s Minimum flow pressure for calculated flow rate 1 bar Flush time, adjustment range 4/8/12 s For manual flush actuation of urinals For Geberit frames for urinal with front actuation For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009) Flush plate with securing bar Flush time setting with air nozzles (pneumatic) Low flush actuation force Short stroke movement Flush actuation when the actuator button is released Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set Flush plate type 30 Pneumatic flush actuation, premounted on mounting frame Pneumatic valve Fastening material
