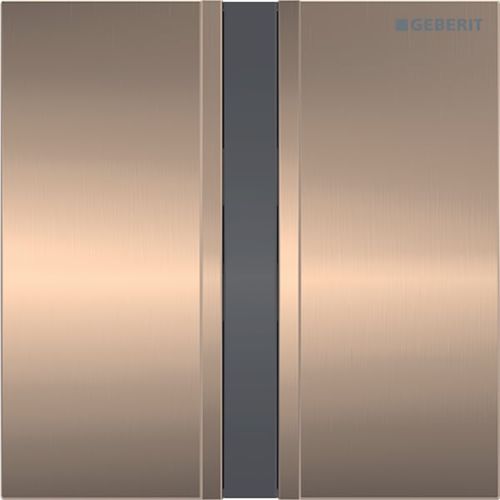

Electronic toilet flush 116.026.GH.1

for urinalscommercial

Can be operated with used water (rainwater) provided it is passed through a filter system first Protection degree IP45 Nominal voltage 110-240 V AC Mains frequency 50-60 Hz Operating voltage 4.5 V DC Power consumption < 0.5 W Flow pressure 1-8 bar Maximum test pressure, water 16 bar Maximum test pressure, air / inert gas 3 bar Relative humidity < 100 % Maximum operating temperature, water 30 °C Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.18 l/s Calculated flow rate 0.23 l/s Minimum flow pressure for calculated flow rate 1 bar Interval flush, adjustment range 1-168 h Interval flush, factory setting 24 h Interval flush time, adjustment range 3-180 s Interval flush time, factory setting 5 s Detection time, adjustment range 3-15 s Detection time, factory setting 7 s Flush time, adjustment range 1-15 s Flush time, factory setting 7 s For automatic flush actuation of urinals For Geberit frames for urinal with front actuation For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009) Cover plate with securing bar Reliable IR distance detection Self-adjusting IR sensor Infrared user detection with background fade-out Water-saving hybrid mode can be set Flush time can be set Adjustable interval flush Dynamic flushing time adjustment Preflush can be set Can be switched to operation with covered urinal Power supply via mains connection Ready for operation upon connection to mains Power supply unit with LED display Power failure control unit Valve-closing function when power fails One-time flush after activation of the power supply
