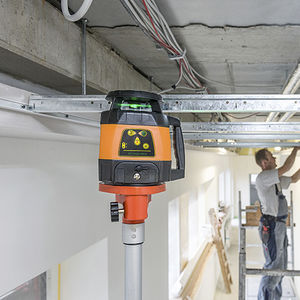

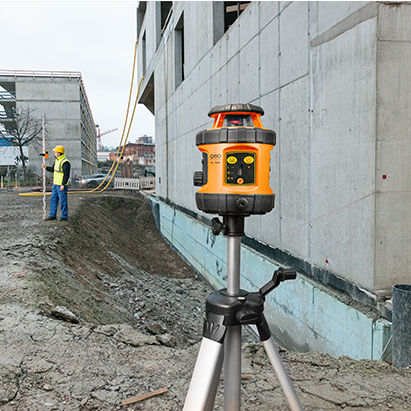

Rotating laser FL 190A is ideally suited for excavation and transferring levels. Whether you are screeding, excavation or aligning a wall, … the instant self-levelling and the instant self-levelling and extended range ensure fast and precise results.
TECHNICAL DATA
Self-levelling range: ± 3°
Accuracy: ± 1,5 mm / 10 m
Working range without receiver Ø: 30 m*
Working range with receiver Ø: 400 m
Rotating speed (rpm): 200, 400, 600
Power supply: NiMH
Operating time: 12 h
Dust/water protection: IP 54
Laser diode / class: 635 nm / 2
Temperature range: -10°C – +45°C
Weight (instrument with battery): 1,5 kg
* depending on the room illumination
FEATURES
Instant self-levelling
Horizontal self-levelling rotating laser; vertical levelling with one footscrew
Automatic shut-off and audible alarm when out of self-levelling range
Variable rotating speed
Permanent 90° beam to zenith
Rechargeable NiMH batteries with intelligent charger
Integrated floor/wall mount with adjustment screw
SUPPLIED WITH
Receiver FR 45 with clamp for levelling staff
NiMH batteries
Charger
Carrying case
