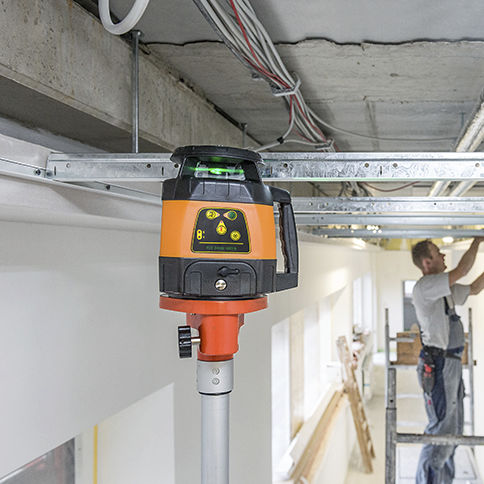

The latest generation laser for the interior professional
New innovative low friction drive mechanism and self-levelling module
Accurate, robust and temperature stable
Low friction drive for reduced noise generation and increased battery life
User-friendly operating concept
For the ultimate in ease-of-use the only control functions on the instrument power on/off the laser beam and the remote control
All additional functions including scanning and slope setting are accessed from the remote control
Improved performance
Robust remote control with 100 m range
TECHNICAL DATA
Self-levelling range : ± 5°
Laser class : 2
Accuracy horizontal : ± 1,0 mm / 10 m
Accuracy vertical : ± 1,5 mm / 10 m
Working range with receiver FRG 45-Green Ø : 1000 m
Slope setting in X axis : ±5° (±9%)
Slope setting in Y axis : ±5° (±9%)
Remote control range : IR 100 m
Rotating speed rpm : 300, 800
Operating time / Power supply : 24 h NiMH
Temperature range : -20° – +50°C
Dust / water protection : IP 54
FEATURES
Feature packed laser designed for the interior professional with dust and water protection making it suitable for outdoor use
Working range 500-1000 m diameter (depending on model)
Dust / water protection IP 54
Variable scanning and laser point mode
Permanent 90° plumb beam
Automatic TILT alarm function
Auto-shut-off when out of level
Manual slope setting of X and Y axis
Remote control function (on/off)
Green laser for enhanced visibility without using a receiver
Laser Class 2 without power loss
Temperature range -20°C to +50°C
SUPPLIED WITH
Receiver FRG 45-Green with clamp
Remote control
Rechargeable battery (NiMH)
Intelligent charger
Battery case for alkaline batteries
