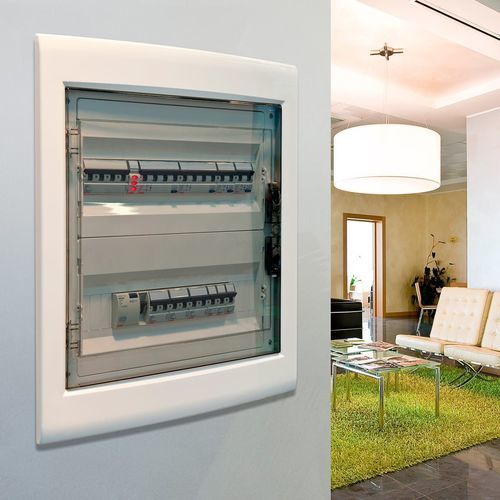

Electrical installation flush-mounted box 40 CDI

waterproof

Product overview
The widest range of flush-mount distribution boards and enclosures on the market. Seven product families designed for residential and commercial installations. Available in standard and halogen-free materials. Models from 2 to 72 modules, protection ratings IP40 to IP55 and specific versions for plasterboard (drywall). The range also includes two multimedia enclosures: Full Version (54 modules) and Compact Version (36 modules).

Families and versions

• Seven families to address different installation needs and aesthetics
• Standard and Halogen Free material options
• Module configurations: from 2 up to 72 modules
• Protection degrees: IP40 to IP55 depending on model
• Special versions for plasterboard installations
• Multimedia enclosures: Full (54 modules) and Compact (36 modules)

Applications

• Residential electrical installations
• Commercial and tertiary buildings
• Multiservice apartments integrating passive and active multimedia devices (modems, switches, terminal boxes)
• Installations requiring varied module counts and protection levels

Technical specifications

• Brand: Gewiss
• Series: 40 CDI
• Material: standard and Halogen Free options
• Module range: 2–72 modules
• Protection rating: IP40 to IP55 (depending on model)
• Door options: smoked transparent or solid doors (model-dependent)
• Multimedia variants: Full (54 modules) and Compact (36 modules)
• Typical sectors: residential, commercial, tertiary and light industrial
