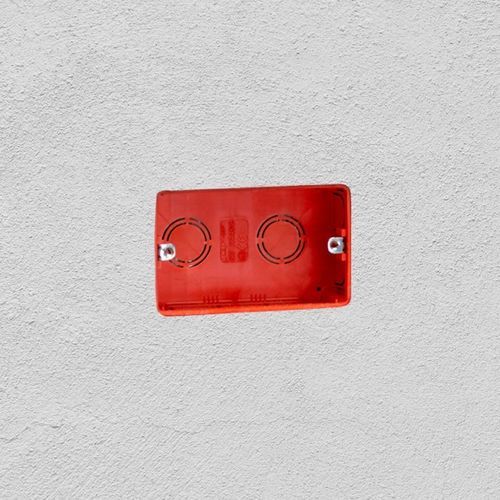

Electrical installation flush-mounted box 24 SC

mechanical

Overview
Wide range of flush-mount, surface and underfloor distribution boxes for residential and commercial installations offering high mechanical robustness and a comprehensive set of accessories (dividers, junction elements, mortar-guard shield, etc.). Underfloor outlet boxes can be customised by capacity, external finish and internal fittings and accept SYSTEM range components and DIN rail devices.

Benefits

• Boxes for masonry walls: BIG BOX versions provide increased internal volume and a wide selection of accessories for traditional and smart-home installations.
• Underfloor outlet boxes: variants designed for safety, connectivity and energy distribution; available in 10, 16, 20 and 32 SYSTEM module configurations; options include walkable covers (empty or stainless finish) and metal casing for installation in poured cement floors.
• Surface-mount boxes for domestic plates: aesthetic solutions compatible with domestic plate ranges enabling quality installations where concealed mounting is not feasible.

Products (examples)
Cod Gewiss | Internal modularity | No. of supports | Outer dim. LxHxD (mm)
GW24601 | 10 SYSTEM modules | 2 supports with 5 System mod. | 212x98x320
GW24602 | 20 SYSTEM modules | 4 supports with 5 System mod. | 364x98x320
GW24611 | 10 SYSTEM modules (stainless steel cover) | 2 supports with 5 System mod. | 212x98x320
GW24612 | 20 SYSTEM modules (stainless steel cover) | 4 supports with 5 System mod. | 364x98x320
GW24606 | 16 SYSTEM modules (hollow cover) | 1 base, 8 supports with 2 System mod. | 212x98x320
GW24607 | 32 SYSTEM modules (hollow cover) | 2 bases, 16 supports with 2 System mod. | 364x98x320

Technical specifications

• Series: 24 SC Range
• Installation types: flush-mounting, surface-mounting and underfloor outlet boxes
• High mechanical robustness; BIG BOX options for increased internal capacity
• Accessories supplied or available: dividers, junction elements, mortar-guard shields, separators
• Underfloor versions: 10, 16, 20, 32 SYSTEM module configurations; walkable covers (empty or stainless); metal casing option for poured cement floors
• Cover finishes: hollow cover, stainless steel cover, INOX
• Compatibility: accepts SYSTEM range components and DIN rail devices (DIN installation kits available)
• Glow wire test: up to 850 °C for specified underfloor outlet boxes
• Typical outer dimensions: 212x98x320 mm and 364x98x320 mm
