gasoline engine walk-behind cultivator
G Z1 / Z2 / Z3

Add to MyArchiExpo favorites
Compare this product Don’t compare this product

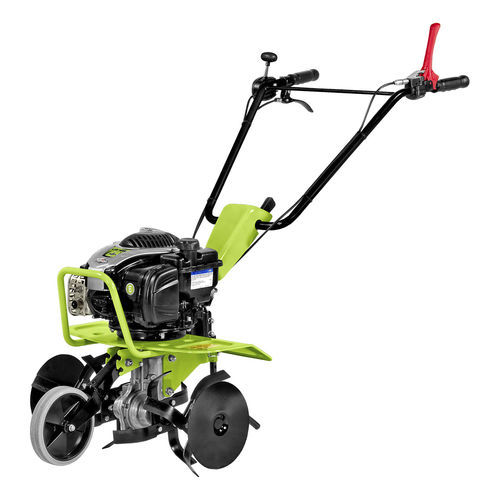

gasoline engine walk-behind cultivator gasoline engine walk-behind cultivator - G Z1 / Z2 / Z3
{{requestButtons}}

Characteristics

  • Motor type:

    gasoline engine

  • Working depth:

    280 mm (11 in)

Description

The G Z1 tiller is reliable, simple and safe!
It ensures excellent results on hard soil as well.
This model is compact, and is ideal for tilling the ground near to corners or in confined spaces.
The tiller has a width of just 57 cm.

The tines turn even when the tiller is not moving forward enabling you to put the machine into reverse with very little effort.

The Grillo GZ1 is equipped with an active coupling device: if you depress the lever on the handle, you will engage the tines. When the lever is released the tines stop immediately whilst the engine will keep on running.
The side discs should not be used when you till on hard soil that has not been previously tilled.
The side discs are very useful on soft soil, they help to keep the machine in a straight line and also protect the plants around the area being tilled.

The tiller is fitted as standard with two different spurs: one is suitable for soft soil while the other is suitable for hard soiI. The spurs adjustment determines the machines working depth.
A low adjusted spur will make the tines dig deeper into the soil.

A high adjusted spur will move the centre of gravity forwards and the machine will move forwards more rapidly.
The use of side discs together with a high adjusted spur will increase the uplift and advancement.
The GZ1 is fast, well-balanced and precise!
The gearbox which is in an oil bath ensures maximum strength and longevity. It was completely designed and manufactured by Grillo in their own facility.

The 3 HP engine ensures the optimum torque for tilling at 2400 rpm ! You can till slowly starting at 80 – 90 rpm or rapidly up to 155 rpm, depending on the soil's condition and the required tilth.
