Cast iron drain grate IMPU D-3A
for public space

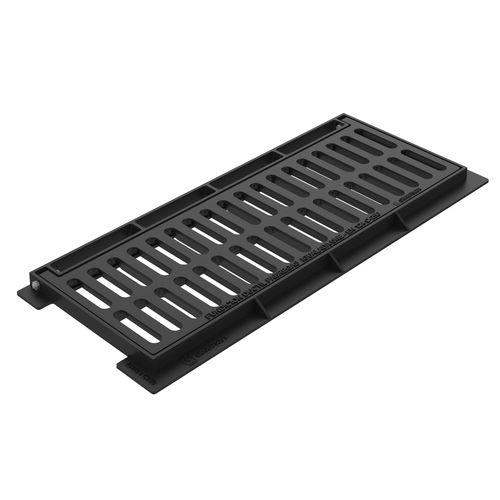

Cast iron drain grate - IMPU D-3A - Grup Fabregas - for public space

Cast iron drain grate - IMPU D-3A - Grup Fabregas - for public space - image - 2

Add to favorites

Compare this product

Characteristics

Material: cast iron
Applications: for public space

Description

Folding grate and frame anti-bikes type Impu. In ductile casting for 25 TM. Of breaking load. It conforms the standard UNE EN-124 class C-250. Technical data sheet Class - Norm - EN-124 Outside width - 334.00 mm Outside length - 818.00 mm Height - 29.00 mm Clearance dimension X - 217.00 mm Clearance dimension Y - 705.00 mm Clearance dimension - 217.00 mm

Catalogs

No catalogs are available for this product.

See all of Grup Fabregas‘s catalogs
