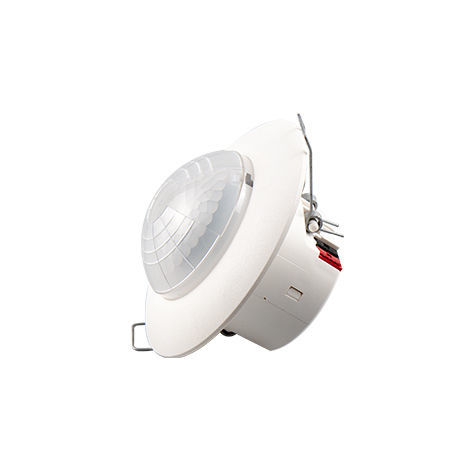

Motion detector CSBPC-02/00.1presencebrightnesswall-mounted
Add to favorites
Compare this product
Characteristics
- Type
- motion, presence, brightness
- Installation
- wall-mounted, ceiling-mounted
- Sector
- industrial, commercial
- Electric powered
- mains powered
- Color
- white
- Other characteristics
- contemporary, PIR, KNX
- Width
63 mm
(2 in)- Length
88 mm
(3 in)- Height
88 mm
(3 in)- Detection angle
105 °, 360 °
Description
Brightness measuring
The brightness measuring via internal light sensor or KNX
Presence detector additional HVAC applications
Motion or Presence detector can be integrated control with ambient brightness
Use as single device or as main detector, respectively secondary detector
Sequence operation for the Motion or Presence detector
Integrated 2-level light control (switching)
Integrated constant light level control (dimming)
Bus voltage 21-30V DC, Via KNX bus
Bus current 10mA
Bus consumption 300mW
Presence detection(PIR) Horizontal 360°, vertical approx. 105°, 288 sectors
Brightness measurement 20~1000LUX, Max. is 20000 LUX after calibration
