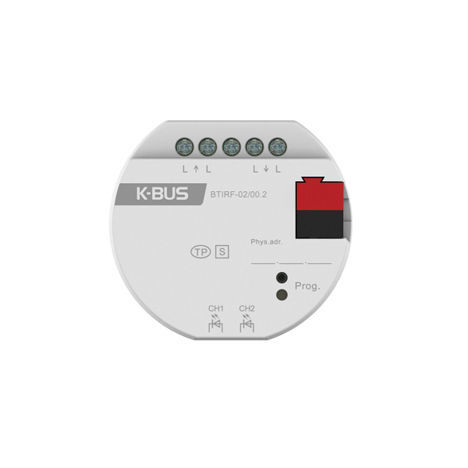

Gateway interface module BTIRF-02/00.2

DIN railKNX

KNX Gateway for IR includes KNX Gateway for IR,Flush mounted,2-Fold (BTIRF-02/00.2) and KNX Gateway for IR,Ceiling (BTIRC-01/00.2). Each product has 2 IR emission channels which can be set as universal IR control or Air-condition control, up to store 300 different IR codes. In addition, KNX Gateway for IR,Flush mounted also has 1 fold current detection function, which can confirm the on or off status of controlled device via current status, and avoid false triggers if On and Off are controlled by the same IR code. KNX Gateway for IR,Ceiling supports for a 360° all-round emitted Bus voltage 21-30V DC, via the KNX bus Bus current <6.5mA, 24V ；<6mA, 30V Bus consumption <180mW Dynamic current <9.5mA, 24V ；<8mA, 30V Current detection range 50mA-10A Current detection accuracy 50mA-500mA ±20mA ；500mA-10A ±5% Channel 2 independent channels Max. Transmitting distance 2m IR wavelength 940nm IR emission receiving angle <45° KNX Bus connection terminal(Red/Black) Load Screw terminals, Wire Range, Multi-core 0.2-1.5mm2 IR detector extension cable <10m Operation – 5 °C ... 45 °C Storage – 25 °C ... 55 °C Transportation – 25 °C ... Humidity <93%, except dewing Mounting In wiring box, 80×80mm or 86×86mm Dimension φ53×23.5mm Weight 0.04kg
