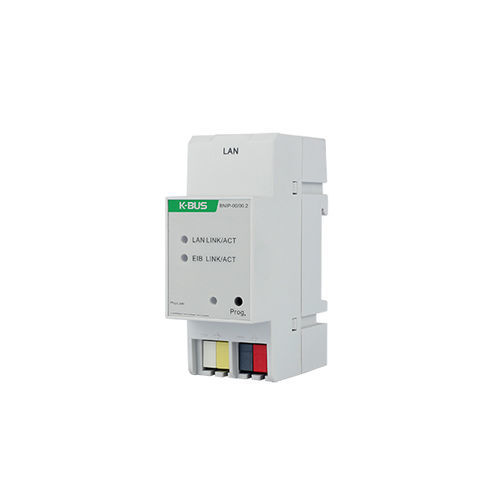

Gateway interface module V2.0DIN railKNXIP
Add to favorites
Compare this product
Characteristics
- Type
- gateway
- Other characteristics
- DIN rail, KNX
- Network
- IP
Description
Support KNXnet/IP Tunneling,and the port number 3671
Serves as a communication interface between KNX installations and IP networks
Can be used as the programming interface
Support 5 KNX IP client connections
Support remote upgrade the device via the internet
Support remote debugging KNX project
Bus voltage 21-30V DC, Via KNX/EIB
Bus current <12mA
Bus consumption <360mW
Auxiliary voltage 20-30V DC
Auxiliary consumption <1W
Dimension 36×90×64mm
