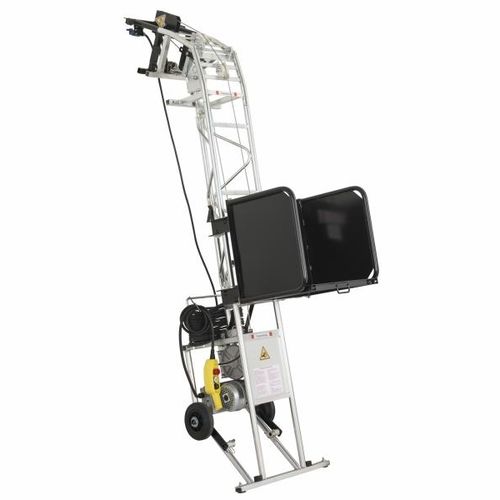

Construction site lifting platform 311500401

inclinedoutdoorautomated

Haemmerlin technology at the best value for money. Load capacity 150 kg. Triangle beam electro-galvanised ladders for maximum stiffness. Corrosion resistant. New working height: up to 20 m maximum, for more performance. The winch is integrated into the ladder base and thus protected against theft. Equipped with 120 L steel roofer platform with removable side panels for transportation of very bulky material. Optional front panel. Maximum working height 20 m inclined or vertical (with additional parts, please contact us). Lifting speed: 20 m/min. Pre-angled steel knee joint adjustable from 20 to 60°. Single-phase 220 V / 50 Hz electric winch integrated into the ladder base. 0.75 kw power. Ladder base equipped with a pair of wheels to facilitate handling. Can be installed inclined and vertically for a working angle of 30 to 90°. Non-detachable 220 V direct remote control. Universal trolley equipped with parachute system. Supports integrated in the knee joint and the headboard. Minimum generator power: 4.5 kVA. Tool-free assembly thanks to pins. Weight : 165 kg. We recommend to add shoring and/or anchorage accessories (sold separately) while using our hoists. The anchoring and shoring regulations can be downloaded at www.haemmerlin.com
