Construction site lifting platform 312150151

outdoorautomatedmechanical

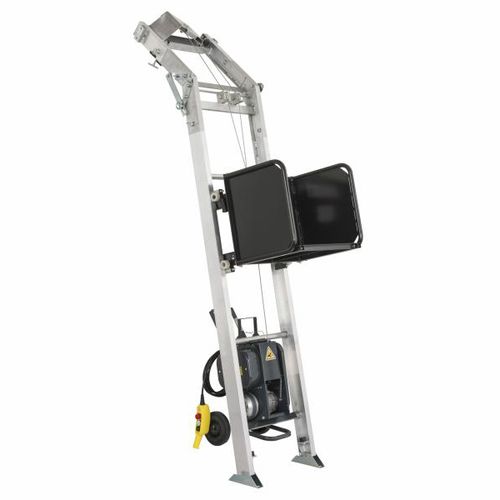

Building site hoist with interlocking ladder sections, in aluminium profile. Load capacity 150 kg. New adjustable knee joint from 0 to 40°. Adjustment flexibility: extensions from 0.5 m, 1 m and 2 m. Quick installation thanks to pre-mounted features (trolley with integrated roofer platform, bottom bumpers included in the ladder base). Easy installation and handling thanks to lightness of aluminium. Robust and resistant, does not rust. Equipped with a roofer platform with removable side panels, 124 L capacity, dimensions 556 x 446 x 502 mm. Front panel optional. Winch easily removable from ladder base and equipped with wheels for handling. Maximum working height 15 m inclined and vertical (with additional parts, please contact us). Lifting speed: 20 m/min. Single-ply aluminium knee joint adjustable from 0 to 40°. Single-phase 220 V / 50 Hz electric winch, thermal protection. Power 0.85 kw. Detachable 24 V remote control. Standard trolley equipped with parachute system. Bottom slack wire rope integrated into the winch, upper safety via hard stop. Bottom bumpers integrated into the ladder base. Minimum generator power: 4.5 kVA. Quick assembly of the hoist without tools thanks to the Easy Bolt quick bolts system. Weight : 147 kg. We recommend to add shoring and/or anchorage accessories (sold separately) while using our hoists. The anchoring and shoring regulations can be downloaded at www.haemmerlin.com.
