Stainless steel fastening system BODY

for panelsfor facade claddingexterior

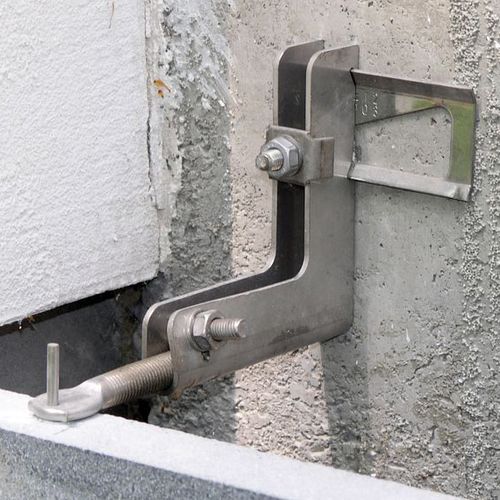

■ - 3D adjustable brackets for wall panels made of natural stone or concrète ■ - Stand-off distance of 30-330 mm, maximum load 1300 N as standard version ■ - Can be used in horizontal and vertical joints The HALFEN Body anchors are 3D adjustable brackets for wall panels made of natural stone or concrete, which are fixed to the load-bearing structure using HALFEN channels or approved HALFEN bolts. The key benefits of Body anchors are that they are suitable for a stand-off distance of 30-330 mm with a load capacity up to 1300 N in the standard version. These can be used in horizontal and vertical joints and, above all, their immediate load-bearing capacity, which means work can be progressed quickly. The monitoring and certification authority of the LGA (Bavarian state trade institute) Nuremberg awarded the quality certificate "LGA tested Quality" to HALFEN Body anchors. The quality certificate is the first independent seal of quality for the production and design of such cladding systems. Depending on the model, the HALFEN Body anchor carries both vertical loads from the panel weight and horizontal loads, for example, from the wind. Depending on the building situation, you can choose from four different models of HALFEN Body anchor.
