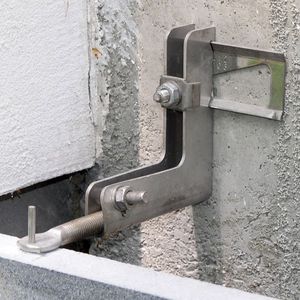

Stainless steel fastening system UMA

for panelsfor facade claddingexterior

■ - adjustable in three directions ■ - allowable loads up to 3960 N depending on the stand-off distance ■ - suitable for régions prone to earthquake HALFEN Grout-in anchors form one of the traditional methods for anchoring wall panels made of natural or artificial stone to supporting structures made of concrete or masonry. HALFEN UMA Support anchors are available in a variety of load capacities. The corresponding HALFEN UHA restraint anchor is used to absorb horizontal or wind loads. Due to their round cross-section, HALFEN UMA / UHA Grout-in anchors can be used both in horizontal and vertical joints. Like the HALFEN Body anchors, the type-tested HALFEN Grout-in anchors have been awarded the quality certificate "LGA tested Quality". HALFEN UMA Grout-in anchors HALFEN UMA Grout-in anchors are support anchors, they can absorb both vertical and horizontal loads. Depending on the anchor type a stand-off dimension of up to 300 mm with a maximum load of 4000 N is possible. The anchor`s 3-dimensional adjustability is achieved using an over-size drill hole which is filled with cement mortar. The anchors are type-tested (Design 1 and 2). Depending on the building situation, designers and engineers have 6 different standard design variations to choose from.
