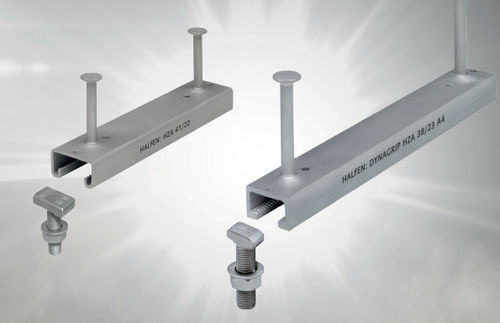

Steel fastening system HZA DYNAGRIP

for facade coveringfor curtain wallinterior

DYNAGRIP HALFEN Channels are a new development for applications with high loads, where the channel is cast in vertically. The special toothed channels guarantee a positive mechanical connection, additionally the HZA DYNAGRIP HALFEN Channels can safely absorb fatigue-related stress ranges of up to 15.0 kN, with a number of cycles of N = 2x106. They therefore fulfil all the requirements for the secure fixing, for example, elevator guide rails or crane runways. The channels are also ideally suited for vertical installation, e.g. in concrete columns carrying longitudinal loads. HALFEN HZA-PS Cast-in channels are suitable for applications in safety relevant areas of nuclear power plants and other nuclear facilities. To Technical Product Information HZA-PS 20-E. Safe and reliable • No damage to the load-bearing reinforcement • Approved for use in building components with fire protection requirements • Suitable for installing in concrete compressive and concrete tension zones • Hot-rolled profiles suitable for dynamic loads • HZA DYNAGRIP building authority approved Fast and economical • Adjustable anchoring • Bolting instead of welding • Maximum efficiency when mountings in rows • Installation with basic tools therefore cost savings • Reduced construction time by pre-planning • Wide range for the most varied of requirements • User friendly installation; no noise; no dust; no vibrations
