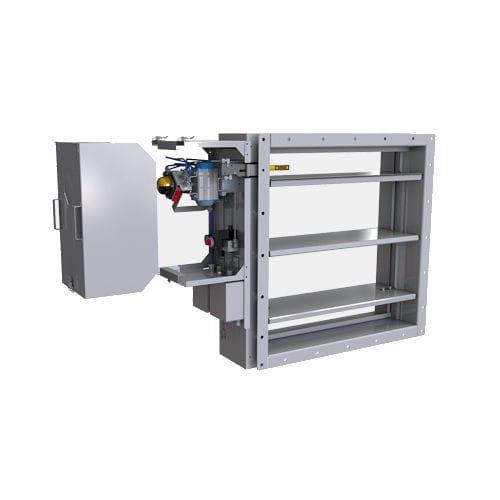

Fire damper FDA

fire damper
fire damper
Add to favorites
Compare this product

Description

Type-approved fire damper by most recognized classification societies: A0 without insulation, A-15 to A60 when suitably insulated Available as ATEX certified Blades contain stainless steel spring seals for low leakage in normal conditions and thermal expansion graphite seals (effective from 150ºC) to seal the damper in case of fire. Closed damper fulfills the requirement of leakage class 3 (EN1751:2014) > 300x300 mm. Casing leakage class C. Nominal strip fuse temperature 50ºC, 74ºC or 100ºC. Other temperatures available. Nominal glass bulb fuse release available as an option with temperatures 68ºC or 93ºC. Other temperatures available Low weight due to double skin blade structure Electrical or pneumatic operation system available Maximum duct pressure for damper construction 5000 Pa and maximum air velocity 15 m/s Normal operation temperature for damper between -50ºC to +80ºC. Actuator and component selection can have an effect on this temperature range. Other temperatures available on request. Halton FDA fire dampers are type-approved class A0(A60) fire and gas dampers for use in offshore, marine and navy ventilation systems. The FDA can be installed in rectangular or circular ducts. All fire dampers have a fusible link and they prevent the spread of fire and gases within the ventilation ductwork. When the blades are in the open position, the device does not cause significant pressure loss, noise or flow disturbance. An open-closed indicator is visible on the outside of the damper. Fire dampers with non-standard dimensions can be supplied on request.

Catalogs

Other HALTON products

FIRE DAMPERS
