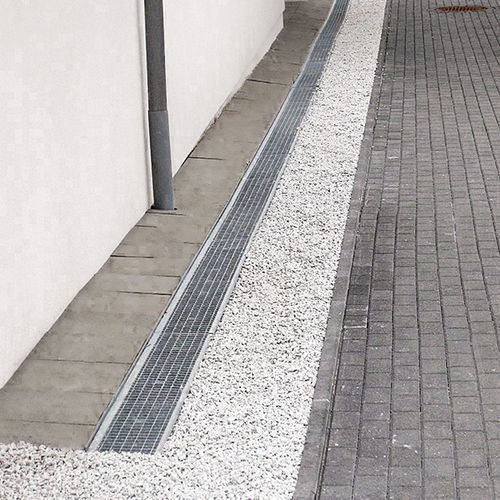

Drainage channel with grating DACHFIX STEEL

singlecompositegalvanized steel

Regulation-compliant drainage for façades, flat roofs & balconies. Your benefits with DACHFIX STEEL The DACHFIX STEEL channels have been specially developed for reliable and safe drainage of façades, flat roofs, balconies and roof terraces. The stable, corrosion-protected drainage channels made of galvanised steel or stainless steel permanently protect buildings from ponding water while ensuring accessible entrances and exits. The systems meet high architectural demands with a range of grating designs: slotted, mesh, perforated or longitudinal and materials in composite, galvanised or stainless steel. They provide reliable and secure barrier-free threshold drainage and comply with the design principles of accessible building construction according to DIN 18040. Large channel range with different construction widths (115-255 mm) and heights (45-150 mm) Toggle system for easy connection of the channel elements and optional screwing of the grating Simple connection options via pre-stamped drainage points via drain box for underbuilt soffit areas Drain box outlet in substructure; vertical or horizontal connection via cross-intersection channel to DACHFIX POINT Pre-perforated cut-outs DN/OD 75 and DN/OD 110 for various connection options Easy accessibility for mobility aids and pushchairs Unique end cap that can easily be fixed using a clip function Practical height adjustment with four set screws for easy alignment on uneven surfaces
