Drainage channel with grating FASERFIX STANDARD
slopedfiber-reinforced concretemetal grate

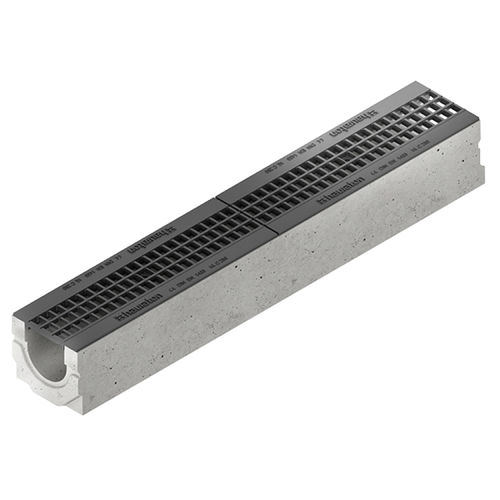

Drainage channel with grating - FASERFIX STANDARD - HAURATON - sloped / fiber-reinforced concrete / metal grate
Drainage channel with grating - FASERFIX STANDARD - HAURATON - sloped / fiber-reinforced concrete / metal grate
Add to favorites
Compare this product

Characteristics

Configuration
with grating, sloped
Material
fiber-reinforced concrete
*grid material
metal grate
Applications
for public spaces
Level of traffic
light traffic
Other characteristics
rainwater, custom-made
Length

500 mm, 1,000 mm
(20 in, 39 in)

Width

100 mm, 150 mm
(4 in, 6 in)

Depth

Max.: 245 mm
(9.65 in)

Min.: 140 mm
(5.51 in)

Description

Solid drainage channel for private and public areas due to easy self-installation. Our solution – your benefit with FASERFIX STANDARD FASERFIX STANDARD channels are particularly suitable for drainage in predominantly private areas as well as public areas. The drainage system can withstand loads up to class C 250 according to EN 1433. Fitting elements, mitre cuts, holes and openings with or without built-in fall are available for individual solutions. As a high-quality material, the concrete reinforced with basalt fibres ensures optimum stability and good adhesion to the foundation concrete at low weight. Available with and without built-in fall for more flexibility Resistant to frost and de-icing salt Inlet with connection possibility, with removable sludge trap bucket End caps with and without outlet Tongue and groove joints for precise installation Numerous grating options High level of stability through the locking of the grating by means of a locking handle
