Wall hinge VARIOFOLD 80/GV

metalcontemporary

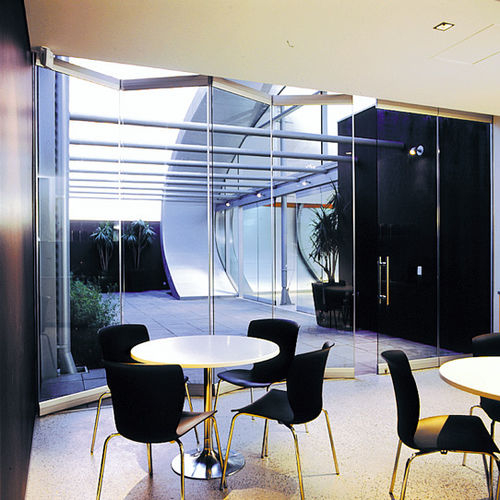

Hardware system for all-glass folding walls with panels weighing up to 80 kg (176 lbs.). Description HAWA-Variofold 80/GV is a hardware system for all-glass folding-wall installations with an even number of panels. If required, an access door may also be installed on the opposite side to the folding stack. Our documentation simplifies the task of planning such systems, and installation is also simple and convenient. All mechanisms, suspension devices, guides and locks are fully integrated into highly attractive suspension and glass retainer profiles, which are the same ones used for HAWA-Variotec 150/GV stacking-wall system. Attached to every other panel is a folding-/pivot door catch with an integrated, individually adjustable retainer, to hold the folding wall flush when closed. The newly developed hinge is installed on the side of the profile. Min. panel width 400 mm Max. panel width 900 mm Max. panel height 2600 mm Max. panel weight 80 kg (176 lbs.) The same components may be used for constructing installations that open to the left or right, inwards or outwards The opposite side may be equipped with a separate pivot door Vertical adjustment ± 3 mm Elegant design Secure locking mechanism Extremely smooth and silent operation Minimal space requirement in stacking area Fully tempered monolithic glass: 10/12/12.7 mm Fully tempered laminated glass: 10,8–13 mm
