Wall hinge APERTO 60/H

metalcontemporary

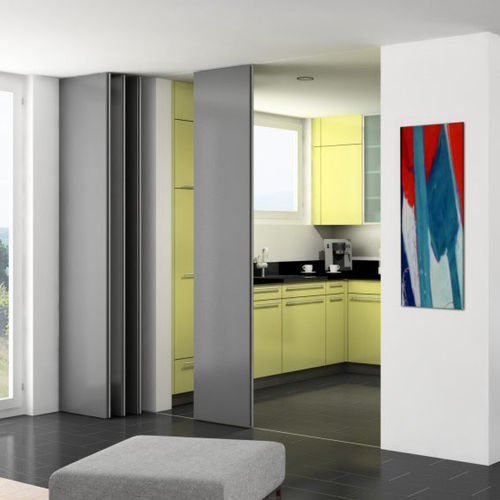

Sliding walls without efforts. Hardware system for stackable wooden partitions up to 60 kg (132 lbs.) Description The first system on the market purpose-designed for lightweight wooden partition walls up to 60 kg (132 lbs.) per panel combines high quality with an economical price. It offers a particularly attractive architectural solution because the closed partition is perfectly flush, and requires only a small stacking area when opened. With the comprehensive assembly instructions, craftsmen can plan and fit simple installations by themselves. Furthermore, HAWA Aperto 60/H is a standardised system with a very simple component structure, which ensures rapid delivery of all parts from stock. Maximum ease of operation is attained using a bottom guide chan-nel. Installations without a bottom guide channel are also possible at lower panel weights and careful operating. Maximum panel weight 60 kg (132 lbs.) Panel thickness 35-50 mm Minimum panel width for standard installation 550 mm Maximum panel width for standard installations: - stacking 90° to the slide axis, 950 mm - stacking parallel to the slide axis, 1500 mm Maximum panel height 2600 mm Adjustable vertically ± 3 mm Centre stop with progressively adjustable retention spring catch Comprehensive planning and assembly instructions Stacking area accommodates up to 9 door panels Stacking at 90° and parallel to the sliding axis A single lock secures the entire installation Installations without a floor track are possible for lower panel weights Top tracks and bottom guide channels: alu plani anodized
