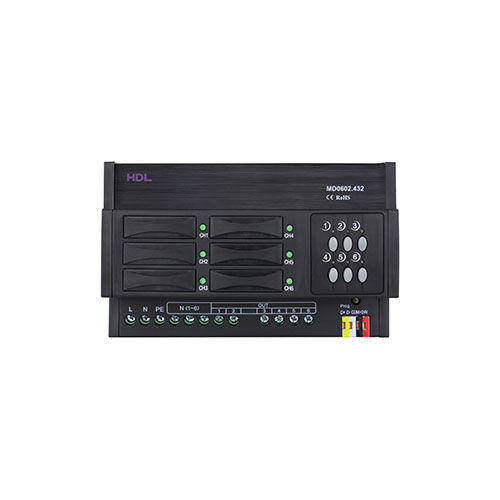

Switch actuator MD0602.432

6CH 2A Leading Edge Dimming Actuator supports AC220V and AC110V power input. It has 6 output channels and each channel has a bypass button for manual control. Fuse protection is available for each channel, so that the dimmer will be protected in case of short circuit. LED indicators are available for indicating whether a short circuit occurs in the channel. ■ Up to 6 separate areas; max 12 scenes for each zone ■ Up to 6 sequences and each sequence has 12 steps ■ 4 dimming curves with 512 dimming accuracy ■ Low, high, max threshold for each channel ■ Bypass button for manual control available for each channel ■ Selected scene or scene before power off can be activated automatically when the device restarts ■ Short circuit and over heat protection ■ Up to 2A of each channel, 4A fuse of each channel for protection (aR type) ■ Supports HDL Buspro online upgrade Working voltage：15~30V DC Working current：28mA/24V DC Input voltage：AC100~240V, 50/60Hz Output channel：6CH, 2A/CH Maximum total output current：10A Fuse：4A aR type Dimming mode：TRIAC, minimum load 40W Dimming curves：Linear, 1.5 exponent, 2.0 exponent, 3.0 exponent Working temperature：-5℃~45℃ Working relative humidity：≤90% Storage temperature：-20℃~60℃ Storage relative humidity：≤93%
