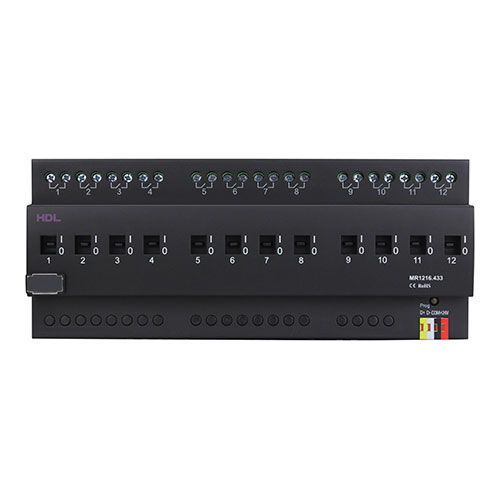

Home automation system switch actuator HDL-MR1216.433

DIN railhomecommercial

12CH 16A High Power Switch Actuator has 12 channels (16A for each channel) and 50A magnetic latching relay. The actuator has manual control switches and supports scene and sequence control. The actuator features low power consumption as well as long life time. ■ 12-channel relay output unit ■ Scene control and sequence control ■ Up to 12 separate zones ■ 24 scenes for each zone, scene running time up to 60 minutes ■ 2 sequences for each zone, up to 12 steps for each sequence ■ Light protection delay for each channel (0-60 minutes) ■ Mass turn-on delay for each channel(0-25 seconds) ■ Manual switch for each channel ■ Stair lamp function of the channel can be set to/by the channel ■ Selected scene or scene before power off automatically activated when device restarts ■ Specified scene or no operation for options when power off ■ HDL Buspro communication ■ Supports online upgrade Basic Parameters Working voltage 24~30V DC Class 2 Working current 35mA/24V DC Input voltage 120V/240V AC (50/60Hz) Output channel 12CH/16A Relay 50A Magnetic latching relay Maximum current of each channel 16A Electronic life time of relay >60000 (Resistance load) Protection Connect a breaker in each channel External Environment Working temperature -5℃~45℃ Working relative humidity ≤90% Storage temperature -20℃~60℃ Storage relative humidity ≤93%
