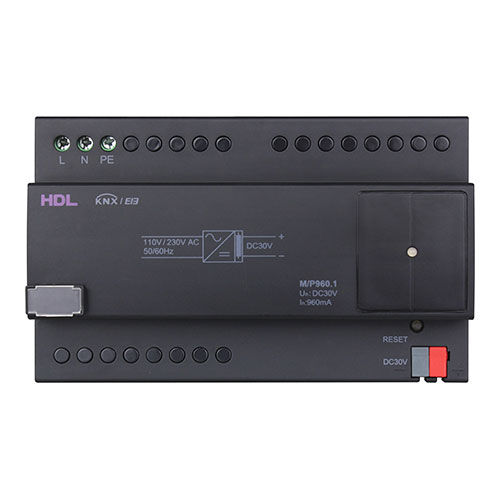

AC/DC power supply M/P960.1

DIN railstabilizedhome

KNX 960mA Power Supply Module is fully compliant with European safety standards and KNX standard protocol. It can provide up to 960mA current to KNX/EIB bus. ■ KNX Power Supply Module provides maximum current 960mA to KNX/EIB bus. ■ Overload protection and over current protection. ■ Output short circuit protection. ■ Keep pressing the RESET button for 2 seconds to reset the device. Basic Parameters Input voltage AC100-240V(50/60Hz) Output voltage 30V DC Output current 960mA Communication KNX Power loss < 20% Power on time <2s User controls Button reset EIB Green LED Output normal Red LED Overload (I> Imax) Cable diameter of KNX terminal 0.6 – 0.8mm External Environment Working temperature -5℃~45℃ Working relative humidity ≤90% Storage temperature -20℃~60℃ Storage relative humidity ≤93% Specifications Dimensions 144mm×90mm×64mm Net weight 390g Housing material Nylon Installation 35mm DIN rail installation Protection rating (Compliant with EN 60529) IP20
