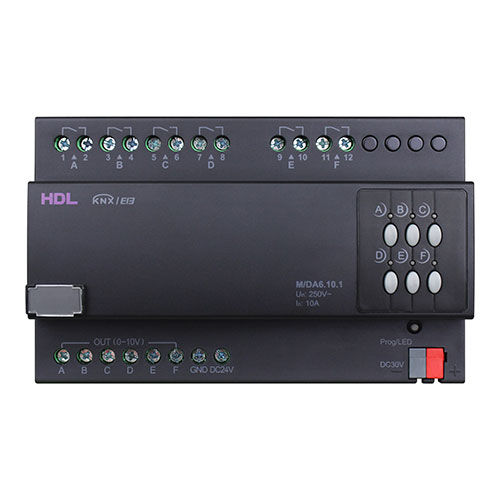

DIN rail dimmer M/DA6.10.1

for home automation systemsKNX

KNX 6CH 10A 0~10V Dimming Actuator supports 6-channel 0/1-10V dimming, and each circuit is equipped with10A relay synchronous control to turn it on and off. The buttons can be manually controlled to control the switch and dimming. Both current absorbing and output ballasts can be used. ■ Supports 6-channel 0/1-10V dimming, and each circuit is equipped with 10A relay synchronous control to turn it on and off. The buttons can be manually controlled to control the switch and dimming. ■ Control types: Statistical total ON time, Status response, Status recovery, Staircase light, Flashing light, Scene control, Dimming upper limit, Dimming lower limit, Sequence control, Threshold switch, Heating control (PWM) Basic Parameters Working voltage 21~30V DC Class 2 Working current 15mA/30V DC Input voltage 120V/240V AC (50/60Hz) Output channel 6CH/10A Dimming output 0~10V DC, 24mA/CH Communication KNX/EIB Shut-off way Impulse type self - locking relay shut-off way Cable diameter of KNX terminal 0.6 - 0.8mm Electrical life time >100000 Mechanical life time >1000000 External Environment Working temperature -5℃~45℃ Working relative humidity ≤90% Storage temperature -20℃~60℃ Storage relative humidity ≤93% Specifications Dimensions 144mm×90mm×64mm Net weight 449g Housing material Nylon Installation 35mm DIN rail installation Protection rating (Compliant with EN 60529) IP20
