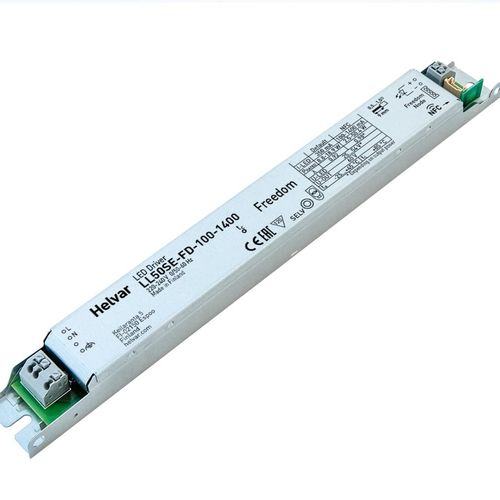

50 W Freedom controllable LED driver
100 mA – 1400 mA adjustable current output
Lifetime (h): 50000
Dimming range: 1% – 100%
Product number: 5 776 000
More information: FREEDOM, AMPLITUDE
Voltage range (V): 198–264
DC range (V): 176–280
Max temperature at Tc point (°C): 85
Ambient temperature range: –25 °C .. +45 °C
IP rating: IP20
Lifetime (h): 50000
Max output power (W): 50.4
Output: Adjustable current
Iout - 100 - 350 - 1400
Uout - 25 – 54 - 25 – 54 - 25 – 36
• Future-proof Freedom Interface to power Freedom Node, enabling
support for various wireless lighting control systems
• SELV output protection for safety and flexibility in luminaires
• Amplitude dimming for the highest quality light output, complying
with IEEE 1789 recommendation
• 1 - 100 % dimming range
• NFC technology for wireless programming
• Low current ripple
• Long lifetime up to 100 000 h
• Suitable for DC use
• Ideal solution for Class I and Class II
• Helvar Driver Configurator support
Functional Description
• Adjustable constant current output: 100 mA to 1400 mA, 350 mA as default
• Amplitude dimming technology for the highest quality light in every application
• Suitable for flicker-free camera recording applications
• Full load recognition with automatic recovery and overload / underload / open circuit / short circuit protection.
• Inbuilt power supply for external Freedom Node / luminaire intelligent unit use.
• Helvar Freedom Interface 1.5 support
