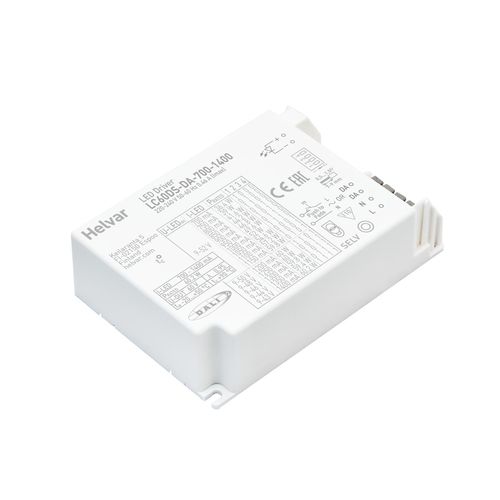

60 W DALI-2 dimmable LED driver
700 mA – 1400 mA adjustable current output
Lifetime (h): 50000
Dimming range: 1% – 100%
Product number: 5 934 005
More information: DALI, AMPLITUDE, PanelReady
Voltage range (V): 198–264
DC range (V): 176-280
Max temperature at Tc point (°C): 90
Ambient temperature range: –20 °C .. +50 °C
IP rating: IP20
Lifetime (h): 50000
Max output power (W): 60.2
Output: Adjustable current
Iout - 700 - - 1400
Uout - 9 – 52 - 9 – 43
DALI-2 certified LED driver, 1-100 % dimming range
• SELV output protection for safety and flexibility in luminaires
• Low current ripple, complying with IEEE 1789 recommendation
• Amplitude dimming for the highest quality light output
• Current setting via dip-switches
• Ideal solution for Class I and Class II luminaires
• For driving Class III (SELV) luminaires, optional strain relief available
for independent use outside of luminaire (LC-SRC)
Functional Description
• Adjustable constant current output: 700 mA to 1400 mA (default)
• Current setting via with dip-switches
• Amplitude dimming technology for the highest quality light in every application
• Suitable for flicker-free camera recording applications
• Optimal fit for EPBD/BREEAM/LEED/WELL due to flicker-free light, energy efficiency and controllability
• Push to Fade functionality for easy-to-use intensity control with smooth fade in transitions
• Potted casing providing additional cover against vibration
• Overload, open & short circuit protection
