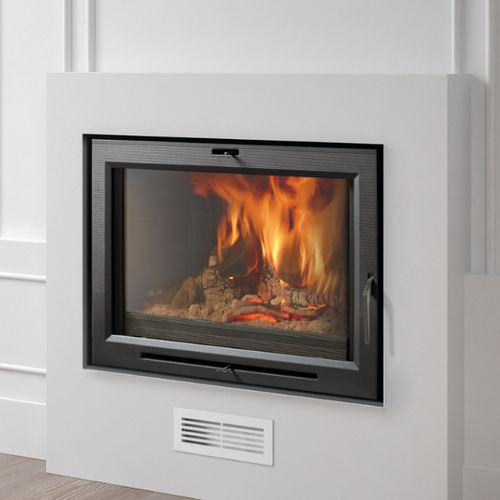

Wood-burning fireplace H-03/80 TURBO

wall-mountedSingle-sidedclosed hearth

MAIN FEATURES NOMINAL HEAT OUTPUT 13 kW HEATING TYPE Radiant / Forced convection CATEGORIAS Hogares turboconvectores COLLECTION Serie Classic OTHER FEATURES MATERIAL - Cast iron FIREBOX MATERIAL - Cast iron DOOR OPENING - Swing PRIMARY AIR CONTROL - Yes SECONDARY AIR CONTROL - Yes COMBUSTION REMOTE CONTROL - No EXTERNAL AIR INLET - No ASH PAN - Yes CONVECTION JACKET - Yes CHANNELED AIR OUTLETS - 4 BLOWERS - Yes BLOWER SPEED CONTROL - Yes BLOWER REMOTE CONTROL - Yes ADJUSTABLE LEGS - No DRAFT VALVE - No SAFETY THERMOSTAT 50º - Yes PAINT FINISH - Grey TECHNICAL DATA EC CERTIFICATION - RRF 29 09 2039 NORM - EN 13229 NOMINAL HEAT OUTPUT (KW) - 13 EFFICIENCY (%) - 78,1% MAXIMUM LOG LENGTH (MM) - 550 WEIGHT (KG.) - 164 FLUE EXIT - Top Ø FLUE EXIT (MM) - 200 Ø AIR CHANNELING EXIT (MM) - 125 MINIMUM DRAFT (PA) - 12 AVERAGE SMOKE TEMPERATURE - 307
