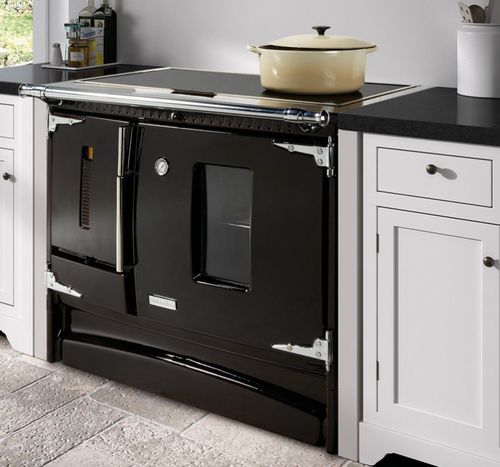

Wood range cooker BESAYA

1 oven2 burnertraditional

MAIN FEATURES NOMINAL HEAT OUTPUT 9,8 kW HEATING TYPE Radiant CATEGORIAS Wood Cookers COLLECTION Serie Classic OTHER FEATURES FUEL - Wood COOK TOP OPTION(S) - Ceramic glass or cast iron FITTINGS - Chrome FRONT MATERIAL - Cast iron FIREBOX MATERIAL - Refractory / cast iron OVEN MATERIAL - Stainless steel PRIMARY AIR CONTROL - Yes DRAFT REGULATION - Yes EXTERNAL AIR INLET - No ASH PAN - Yes GRILL ELEVATOR - No ENAMEL FINISH OPTION(S) - Black TECHNICAL DATA EC CERTIFICATION - RRF 15 11 2796 NORM - EN 12815 NOMINAL HEAT OUTPUT (KW) - 9,8 EFFICIENCY (%) - 75,2% OVEN DIMENSIONS (W X H X D) (MM.) - 500 x 385 x 425 CO EMISSIONS (13% O2 VOL. %) - 0,06% MAXIMUM LOG LENGTH (MM) - 400 WEIGHT (KG.) - 275 FLUE EXIT - Superior / Trasera Ø FLUE EXIT (MM) - 150 MINIMUM DRAFT (PA) - 12 AVERAGE SMOKE TEMPERATURE - 248
