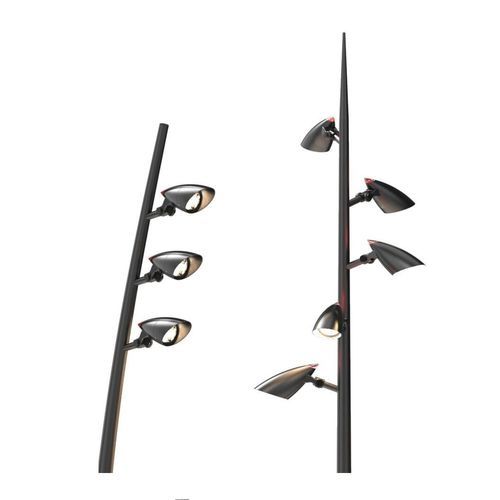

Urban lamp post ARINI

contemporaryPMMApolycarbonate

General
ARINI is a multifunction urban lighting system combining lighting, communication and design to support safety, networking and public-attraction functions in city environments. Variants include lighting-only, RGBW-controlled light, CCTV, GOBO, speaker and WiFi integration.

Technical details
Luminaire head and shield plate: die-cast aluminium. Luminaire cover: PMMA. Luminaire head adjustable in 10° increments — horizontal up to 120°, vertical up to 130°. Shield plate adjustable 360°. Light colour options: 3000K, 4000K. Optic variants: two axially symmetric and three rotationally symmetric configurations.

ARINI Light: end cap made of PC, painted. Electrical protection class I or II. Equipment: LED approx. 54 W.

ARINI Light+: end cap made of PC, partially satin-finished inside and polished outside. RGBW option available; controller variants: CASAMBI, DMX, DALI. Electrical protection class I or II. Equipment: LED up to approx. 60 W.

ARINI CCTV / GOBO / SPEAKER: end cap made of PC, painted.

ARINI WiFi: end cap made of PC, black.

Dimensions
Product drawings and dimension graphics are provided in the product documentation.

Technical specifications

• Luminaire head and shield plate: die-cast aluminium
• Luminaire cover: PMMA
• Head adjustment: 10° increments; horizontal max. 120°, vertical max. 130°
• Shield plate adjustment: 360°
• Light colour options: 3000K, 4000K
• Optic variants: 2 axially symmetric, 3 rotationally symmetric
• ARINI Light – end cap: PC, painted; Equipment: LED ≈ 54 W; Protection class I or II
• ARINI Light+ – end cap: PC (partially satin-finished inside, polished outside); RGBW option with controllers: CASAMBI, DMX, DALI; Equipment: LED up to ≈ 60 W; Protection class I or II
• ARINI CCTV / GOBO / SPEAKER – end cap: PC, painted
• ARINI WiFi – end cap: PC, black
• LED lifetime: L90 B10 / 100,000 h (TA ≤ 25° C)
• Ingress protection: IP66
• Impact resistance: IK08
