Urban bollard light LINEA

minimalist designpolycarbonategalvanised steel

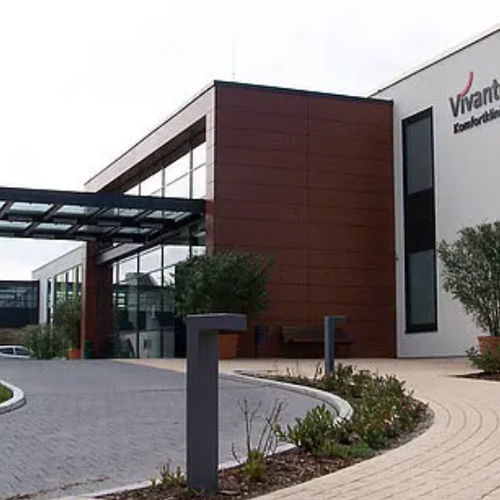

Overview The LINEA luminaire features a discreet, minimalist design. This understated elegance draws attention. When combined with mast luminaires, the LINEA bollard ensures an integrated appearance. It is also suitable for effectively illuminating individual paths and squares.

Applications

• Bollards for pathways and squares
• Combination with mast luminaires for an integrated appearance
• Architectural and public space lighting

Construction and variants Rectangular luminaire body in galvanized steel. Polycarbonate diffuser. Rectangular bollard in galvanized steel, available with either a continuous anchor spike or a fixing plate. Light colors available: 1800K, 2700K, 3000K and 4000K. Electrical class I or II.

Technical specifications (table) LED lifetime: L90 B10 / 100,000 h - TA ≤ 25 °C
Ingress protection: IP65
Impact resistance: IK10

Dimensions Dimensional drawings available in the technical datasheet and product images (technical diagrams provided on the product page).

Features / technical specifications

• Body: Rectangular, galvanized steel
• Diffuser: Polycarbonate
• Bollard mounting: Continuous anchor spike or fixing plate
• Color temperatures: 1800K, 2700K, 3000K, 4000K
• Electrical class: I or II
• LED lifetime: L90 B10 / 100,000 h (TA ≤ 25 °C)
• Ingress protection: IP65
• Impact resistance: IK10
