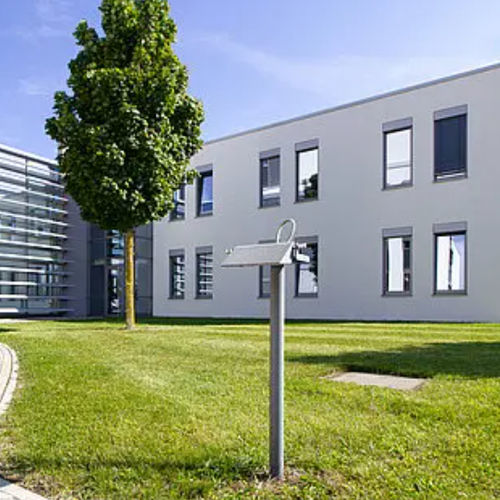

Urban bollard light NOVARA

contemporarycast aluminumgalvanised steel

General
Public spaces and buildings require lighting concepts that are both functional and aesthetically pleasing. The NOVARA luminaire series offers wall-mounted, bracket-mounted and bollard versions suited to various outdoor lighting situations, enabling cohesive lighting concepts for streets, plazas and building perimeters.

Technical details
Triangular luminaire body made of cast aluminium. Luminaire enclosure made of single-pane safety glass. Cylindrical bollard made of galvanised steel, available with embedded base or flange plate. Light colour options: 1800K, 2700K, 3000K, 4000K. Protection class I or II.

• NOVARA L: inclination of the luminaire body infinitely adjustable; cast aluminium bracket; cable protection hose made of stainless steel mesh.
• NOVARA V: vandalism-proof design; luminaire body not adjustable; galvanised steel bracket; internal cable guide.

LED Lifetime (technical data)
LED lifetime: L80 B10 / 85,000 h (TA ≤ 25 °C).

Dimensions (available graphics)
Multiple dimension drawings available for NOVARA L and NOVARA V in single/dual versions and language variants.

Technical specifications

• Series name: NOVARA
• Luminaire body: cast aluminium (triangular)
• Enclosure: single-pane safety glass
• Bollard: cylindrical steel, galvanised; optional embedded base or flange plate
• Light colours: 1800K, 2700K, 3000K, 4000K
• Protection rating: Class I or II
• NOVARA L: adjustable inclination; cast aluminium bracket; stainless steel mesh cable protection hose
• NOVARA V: vandalism-proof; non-adjustable luminaire body; galvanised steel bracket; internal cable guide
• LED lifetime: L80 B10 / 85,000 h (TA ≤ 25 °C)
