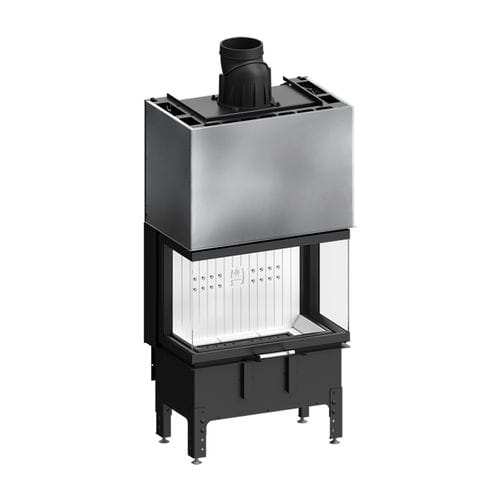

Wood-burning fireplace TRINITY TRI80x35x53.G

contemporaryclosed hearthrectangular

◘Perfect for larger open spaces. ◘A vision of natural fire from three sides. ◘A prestigious line in the offer of Hitze fireplaces. FEATURES Energy class - A Ecodesign - + BlmSchV II - + Nominal power (kW) - 12 Heating load range (kW) - 6-15,5 Thermal efficiency (%) - 78,0 Dust emission [g/m³] - 0,035 Possibility to install the fireplace inserts with warm accumulative casing - NO CO emission by13% O2 (g/m³) - 0,792 Weight (kg) - 324 Flue diameter (mm) - 200 Air intake diameter (mm) - 150 Min. active field of outlet vents (cm²) - 840-960 Min. active field of inlet vents (cm²) - 480-780 Design: Impressive three-way contribution to modern projects with maximum vision of fire. Minimizing the steel elements of the front and the door of the cartridge while maintaining durability and tightness of the furance. Used combined glass without printing maximizes the natural appearance of the furnace. Security: Opening the furnace with the use of a new guillotine mechanism that ensures tightness of the insert, safety against opening by children and servic access. The design of the cartridge minimizes the effect of returning smoke to the room when the door is opened. Comfort: A wide fireplace with a cast iron grate, independently ventilated and controlled throttle. A large container for ash in the form of a removable drawer under the grate. Automatic maintenance of clean glass thanks to a three-way air guide with independent ventilation,ensuring the formation of an air curtain protecting the glass against pollution. The air from the outside is supplied through the stub Ø150, and then divided into three independent channels Ø90: under the grate, lower air curtain and afterburner and the upper air curtain.
