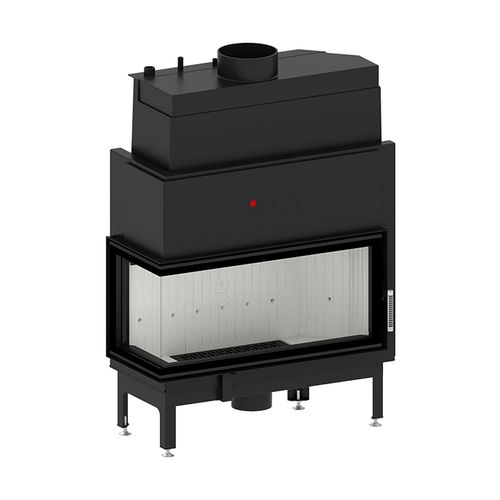

Corner fireplace insert ALAQS 90x41.L-D

wood-burningboiler

High heating efficiency over 80%. Meets ecological standards thanks to low exhaust emissions. Adapted to work in open and closed systems. FEATURES Energy class - A+ Ecodesign - + BlmSchV II - + 15a B-VG - + Heating load range (kW) - 10,5-27 Possibility to install the fireplace inserts with warm accumulative casing - NO Nominal power (kW) - 21 Water cycle heating power (kW) - 7,2 Thermal efficiency (%) - 82 CO emission by13% O2 (g/m³) - 0,691 Dust emission [g/m³] - 0,035 Min. active field of outlet vents (cm²) - 1470-1680 Min. active field of inlet vents (cm²) - 840-1370 Flue diameter (mm) - 220 Air intake diameter (mm) - 150 Weight (kg) - 254 Fuel Type - seasoned wood of deciduous trees (beech, birch, hornbeam) with humidity of 12-20% Glass dimensions (mm) - 900 x 410 x 375 Water jacket capacity (dm³) - 57 DESCRIPTION QUALITY: Water heater made of high quality P265GH boiler steel with a thickness of 4 mm. Solid coat welds are made on the welding robot. A reinforced door profile was used. SAFETY: The built-in coil pipe is an automatic water cooler. An innovative ventilated handle protects against scalding. ECOLOGY: The afterburning system and placing the water jacket over the combustion chamber gives extremely high efficiency of the inserts. EASY CLEANING: An air curtain provides the effect of a „clean glass” and easy cleaning of a cast iron grate with a removable container for ash. INSTALLATION: Possibility of working in an open and closed hydraulic systems. Suitable for homes with recuperation. EASY OPERATION: The built-in air intake with throttle enables smooth integrated regulation of the amount of air supplied.
