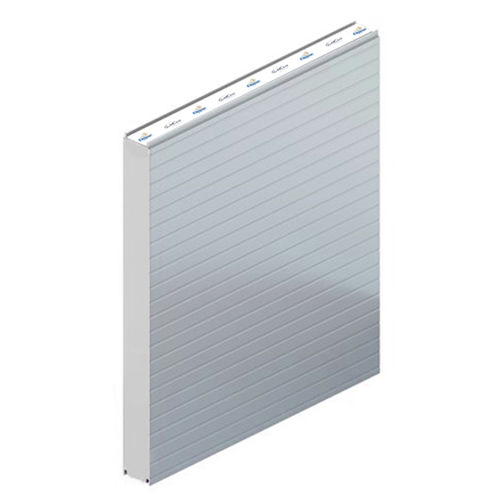

Wall sandwich panel KS1150 NF/NC
metal facinginsulating core

wall sandwich panel
wall sandwich panel
Add to favorites
Compare this product


for walls
Cover sheet material
metal facing
Core material
insulating core

1,000 mm, 1,150 mm (39 in)


Min.: 20 mm (0.79 in)

Max.: 200 mm (7.87 in)


KS1150 NF/NC is a wall system, which is ideal for use in cold stores and air-conditioned environments. With the QuadCore® insulation core, it offers excellent insulation properties. Type: Wall element, visual fix Insulation Core: PIR (IPN3) / QuadCore® Max. production length: 18,00 m Cover Width: 1.000, 1.150 mm Element thickness (D): 40 – 200 mm Fire behaviour: B‑s1,d0 Application KS1150 NC is a wall system with visible fixing and can be used for all building types, arranged both horizontally and vertically. KS1150 NC is optionally available with IPN insulation core or with our high-performance QuadCore® insulation core. It is available in two variants: KS1150 NF has a factory-applied, condenswaterepellent high-quality sealing tape on its longitudinal joint and its external tongue and internal groove joint. KS1150 NC (80-200 mm) is delivered without factory-applied sealing tape. Any necessary project-related sealing of the tongue and groove areas is done on site.


No catalogs are available for this product.
