Bungalow type house DOMESTICeco-friendlyenergy-savingEarth shelter
Add to favorites
Compare this product
Characteristics
- Type
- bungalow type
- Technical characteristics
- eco-friendly, energy-saving
- Style
- Earth shelter
- Configuration
- with terrace
- Framing
- concrete
- Surface area
Min.: 53 m²
(570 ft²)
Description
These buildings are resistant to destructive effects. Global experience of cast-in-situ facilities in coastal and seismically dangerous zones provides strong evidence in favor of their strength.

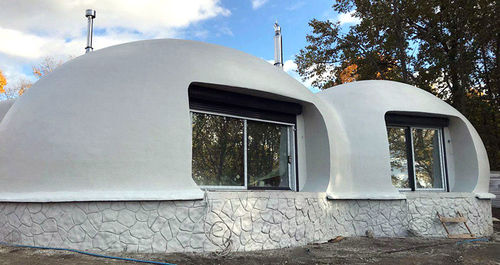

Project of one-storeyed domestic solid-cast house with area 85.2 sq. m. For sheathing is used PVC fabric. Foam plastic is used for insulation 250 mm. Foam plastic is strengthened with reinforcing steel from both sides. Then, inside and outside layers of concrete were applied using dry shotcreting process. Thickness of each layer is 6-10 sm. Electrical installation, utility systems are laid inside of the building. Curvilineal walls are worked up till the spackling finishing. External surface is worked up with layer of face waterproof painted finish.
