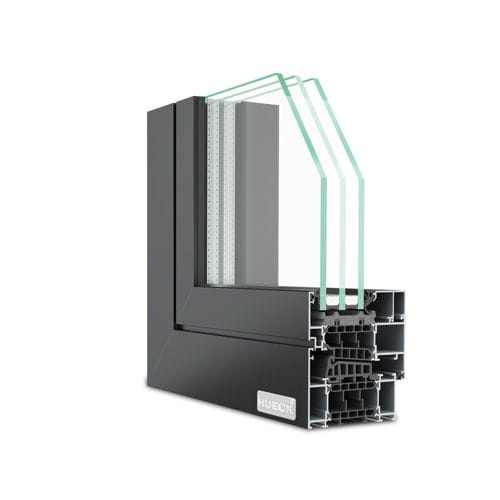

Aluminum window profile LAMBDA WS 090

acousticthermally-insulatedburglar-proof

The HUECK Lambda WS 090 window construction combines all of the advantages of aluminium with the HUECK window systems' intelligent modular system. The processing advantages and lean inventory management, combined with the advantages of the GEN 4.0 fittings system, result in an ideal product for architects, planners, and processors alike. In addition, the modular system as a whole is Cradle to Cradle Certified as part of the HUECK WorldLifeBalance. Product and processing advantages •Stable profile construction with a construction depth of 90 mm for inward opening windows •Glass thicknesses up to 78 mm can be used, with seals for self-cleaning glazing •Highly thermally insulated aluminium window system at the passive house level and optimized “Lambdatherm” insulating zone with insulating bridges made of innovative composite materials •Optional use of concealed or tried-and-tested surface-mounted window fittings •Production-efficient thanks to fewer accessories and component sharing •Compatible with the HUECK Lambda DS 090 door series System data •Thermal transmission coefficient (EN 10077-2): Uf > 0.7 W/m²K •Air permeability (DIN 12207): class 4 •Water tightness (DIN EN 12208): class 9A •Wind-load resistance (DIN 12210): class C5/B5 •Mechanical stress (DIN EN 13115): class 4 •Long-term reliability (EN 12400): class 3 •Burglar resistance (EN 1627 et seq.): up to class RC3 •Sound insulation (EN 10140) up to Rw value: 49 dB
